When an Alvarado full-height (MST) or waist-high (EDC) turnstile begins sticking, hesitating, or failing to lock/unlock cleanly, a failing solenoid mechanism is usually the primary suspect. A sticking solenoid disrupts pedestrian throughput, creates security vulnerabilities, and accelerates wear on the internal locking pawls.
Diagnosing the root cause requires isolating whether the fault stems from mechanical friction, coil degradation in the 50-10-1070 12V Dual Solenoid Assembly, or a voltage drop originating at the 50-10-7821 Logic Control Board.
1. Recognize the Symptoms of Solenoid Failure
Before taking off the mechanism cover plate, note the specific behavior during actuation:
- The arm hesitates before rotating: The solenoid receives signal power, but mechanical binding or coil weakening delays plunger retraction.
- The turnstile stays permanently unlocked: A plunger is mechanically seized in the retracted position or receiving continuous unwanted voltage.
- A distinct "buzzing" or chatter sound: The solenoid coil is receiving low voltage or struggling against excessive return spring tension.
2. Check Electrical Output at the 50-10-7821 Logic Board
Always rule out control signal issues before replacing mechanical hardware. The 50-10-7821 Logic Control Board manages timing, access control inputs, and direct DC output to the locking coils.
Diagnostic Steps:
- Inspect Board LEDs: Power on the unit and trigger an entry credential. Verify that the corresponding direction input LED illuminates on the 50-10-7821 board.
- Measure Solenoid Output Voltage: Set a digital multimeter to DC volts across the solenoid output terminals on the board.
- Verify Under Load: When actuated, the board should deliver a clean, sharp +12VDC pulse. If voltage drops below 10.5VDC during actuation, check your power supply, loose terminal connections, or worn relay contacts on the control board.

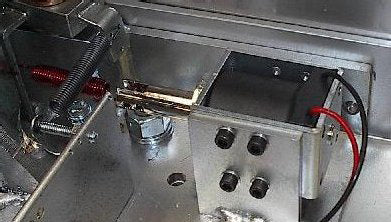

3. Inspect the 50-10-1070 12V Dual Solenoid Assembly
If the control board outputs a steady +12VDC, the issue lies directly within the 50-10-1070 solenoid assembly or its mechanical linkages.
- Disconnect Power & Perform Manual Plunger Push: Disconnect main power to the turnstile. Manually push the plungers into the solenoid body. They should move smoothly with light spring resistance and snap back instantly upon release.
- Check for Debris and Thermal Damage: Inspect the plunger sleeve for metal shavings, dirt buildup, or swollen casing caused by overheating. Never apply heavy grease or oil to solenoid plungers, as wet lubricants attract dust and create a sticky sludge.
- Inspect Plunger Return Springs: Weak or broken return springs fail to push the locking pawl back into the home position, leaving the arm free-spinning.
- Test Coil Resistance: Disconnect the solenoid leads from the terminal block and measure coil resistance with an ohmmeter. A shorted or burnt coil will show near 0 ohms or open circuit (infinity), indicating the 50-10-1070 kit needs immediate replacement.
4. Mechanical Alignment & Pawl Engagement
Even a brand-new solenoid will stick if the surrounding lock head hardware is out of alignment:
- Locking Pawl Drag: Inspect the pivot point where the solenoid links to the lock pawl. Excess wear on the sleeve bushings can cause the pawl to bind against the index plate.
- Centering Spring Tension: If the self-centering springs (Part #15-1000) are worn, the turnstile rotor may not rest in the exact home position, applying physical pressure against the solenoid plunger and preventing it from pulling back cleanly.
|
Preventative Maintenance Tip for Service Technicians |
