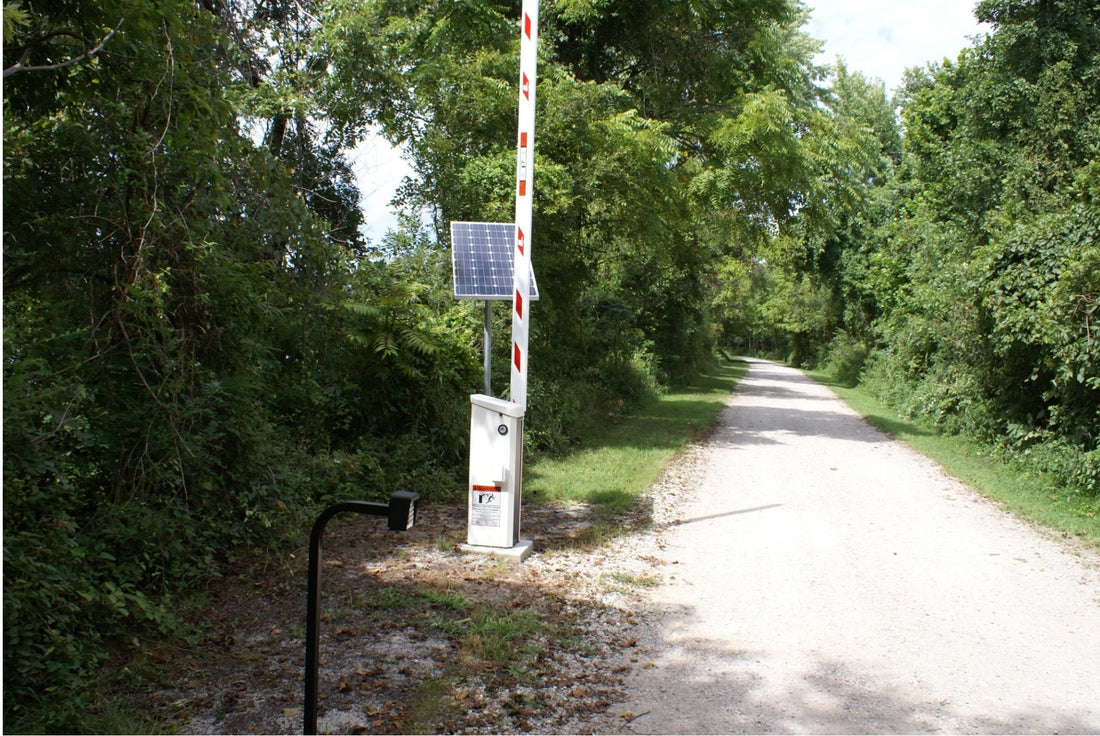

Running conduit and mains power to a remote gate can cost more than the barrier itself — trenching, permitting, and utility coordination add up fast on a site that's a quarter mile from the nearest panel. A 24V DC barrier with solar input solves that problem, but only if it's specified correctly. This guide covers which barrier configurations support solar and off-grid operation, how battery buffering works, and what to check before committing to an off-grid installation.
Which Barrier Models Support 24V DC and Solar Input
Not every barrier in a manufacturer's lineup accepts DC input — most are built around standard AC mains with a wide-range 85-264V power supply. Solar-capable installations instead use models with a 24V DC mains input, which allows the barrier to run directly from solar panel output rather than stepping down grid AC. In the Access family, this typically means dedicated 24V variants — for example, a 24V Access barrier suited to lanes up to 12 feet with a 2.2-second speed, or a 24V Access Pro-H variant for lanes up to 20 feet at a 4.0-second speed with a more modular controller. A dedicated solar barrier model, based on the Access Pro-H platform, extends this further: booms up to 20 feet with boom skirts still possible, and — critically for a field installation — batteries mounted inside the barrier housing itself rather than in a separate weatherproof enclosure you have to source and mount.
Why Battery Placement Matters in the Field
Mounting the battery inside the existing barrier cabinet isn't a minor convenience. It means one enclosure to weatherproof instead of two, one IP-rated housing instead of a housing-plus-battery-box combination, and no additional conduit run between a separate battery enclosure and the barrier. For a remote or off-grid site, every additional enclosure is another point of failure and another thing that has to be vandal- and weather-resistant on its own.
Sizing the System: What to Confirm Before Ordering
Duty Cycle and Expected Traffic Volume
Solar and battery sizing depends on how often the barrier cycles per day, not just its rated power draw. A remote gate seeing a handful of vehicles daily has very different power needs than a site with continuous shift-change traffic. Get an honest cycle-per-day estimate from the site operator before specifying panel wattage or battery capacity — undersizing here is the most common cause of an off-grid barrier that works fine for a month and then starts failing on cloudy weeks.
Climate and Available Sun Hours
Panel sizing has to account for the site's actual usable sun hours across the worst season of the year, not an annual average. A site that works fine in July can still leave the barrier undercharged through a run of short winter days — size for the low season, not the average.
Wire Gauge on the Main Power Connection
Even on 24V installations, the main power connection has a maximum wire gauge specification — 12 AWG on standard Access and Parking models — that needs to be respected on the run between the panel/battery combiner and the barrier itself. Running conductors that are too thin over a longer off-grid distance introduces voltage drop that can look like an underpowered system even when the panel and battery are correctly sized.
Battery Buffering for Grid-Tied Sites Too
Battery buffering isn't only for solar sites — it's worth specifying on any barrier, grid-connected or not, that needs to keep running through power interruptions. A buffering module maintains the barrier's 24V circuit through short voltage dips and outages lasting several hours, so the barrier stays in full operation until the batteries are actually depleted rather than failing the moment utility power blinks. One detail worth confirming with your supplier before ordering: buffering modules are typically compatible with most models in a barrier line but excluded from the largest XL-series units and from Toll-series barriers, so check compatibility against the specific model rather than assuming universal fit. It's also worth noting what buffering does not cover — it typically protects only the barrier's own 24V circuit, not separately powered 115V accessories like boom lighting, which will still go dark in an outage unless those accessories have their own backup.
Boom Length and Skirt Limits on Solar Variants
Solar and 24V barrier variants are not available across the full boom-length range that AC-powered models offer. Confirm the maximum boom length for the specific solar or 24V model you're speccing — dedicated solar variants are commonly capped around 20 feet, versus 33 feet on the largest AC-powered XL models — and account for that when speccing a wide lane on an off-grid site. If the lane genuinely needs a longer boom than the solar-capable model supports, that's a reason to revisit whether trenching in grid power is worth it after all, rather than trying to force an underpowered solar configuration onto a lane it wasn't designed for.
Off-Grid Installation Checklist
- Confirm the barrier model actually accepts 24V DC / solar input — not every model in the lineup does.
- Get a realistic daily cycle count from the site operator before sizing the panel and battery.
- Size the solar array for the site's worst-season sun hours, not the annual average.
- Confirm maximum wire gauge on the main power run and account for voltage drop over distance.
- Check the maximum boom length supported by the specific solar/24V model against the actual lane width.
- Add battery buffering if the site needs to ride through outages, and confirm it's compatible with the chosen model.
- Verify any 115V accessories (boom lighting, heaters) have their own power plan, since buffering typically won't cover them.
When Off-Grid Makes Sense
Solar and 24V barriers are the right call when the cost and disruption of trenching mains power outweighs the barrier's own price — remote agricultural or utility sites, temporary installations, and locations where permitting a new electrical service would take longer than the project timeline allows. Spec the model, panel, and battery together against real cycle counts and seasonal sun hours, and an off-grid barrier holds up as reliably as its grid-powered counterpart.
