Viking Access Systems

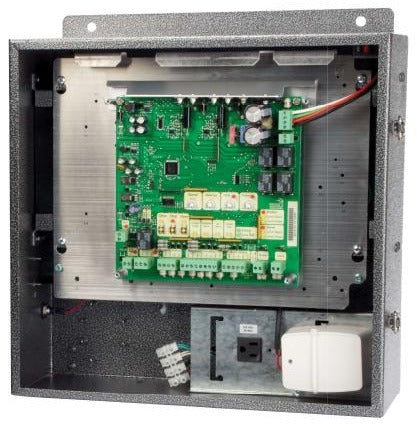

Viking E4 ECU Electronic Control Unit
SKU
VA-ECUBE4
$ 1,108.00
- Ships in 1–2 daysMost products, from order receipt
- Gates & arms varyMay need extra manufacturing lead time
- Viking Access SystemsAuthorized distributor
- Real tech support321-250-2500
- UL 325 compliant
- Two monitoring inputs w/ up to 4 devices per input
- Lightning strike protection
- 24V Solar panel input
- 24V Battery charger
- Low voltage plug-in transformer included
- Two AC receptacles
- 120V toroid transformer (optional)
- Sleep mode
- Adaptive motor control
- Adjustable speed control
- Two 6Ah batteries included
- Big box option
- Enclosure: Aluminum construction, powder coated, post mount options built-in, pre-punched holes for conduit, padlock latch, IP54 certified ingress protection
| Compatible Models | E4 |
|---|---|
| Operating Voltage | 24VDC |
| Voltage Current Specs | 120VAC - 2.0A or 240VAC - 1.0A (each motor) |
| Main Power Frequency | 50Hz / 60Hz |
| Main Power Fuse | 4A Timed (only with 120V option) |
| Alternative Power Source | 24VAC / VDC (60VA) or Solar |
| Accessory Power | 24VDC - 750mA |
| Power Consumption - Sleep | 6mA |
| Motor Current (Typical) | 2.0A |
| Operating Temperature | -20°F (-28°C) to 131°F (55°C) |
| Dimensions Standard Box (L x D x H) | 16.375 x 6.25 x 17.875 in |
| Dimensions Big Box (L x D x H) | 18.75 x 8.125 x 18.2 in |
