Toll TOLLHISPEED2-RAF0640 — Foam Swing, MGC-H, White

Magnetic Access

Toll TOLLHISPEED2-RAF0640 — Foam Swing, MGC-H, White

SKU TOLLHISPEED2-RAF0640
$ 9,766.00

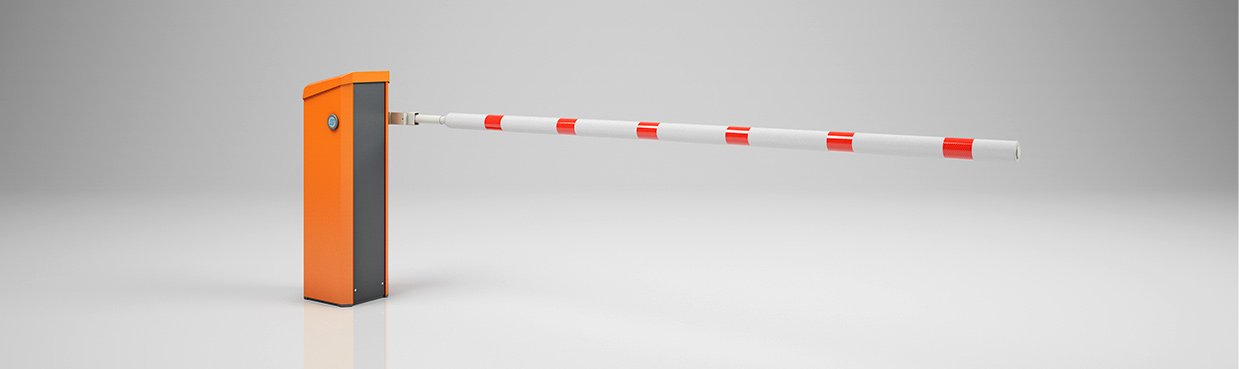

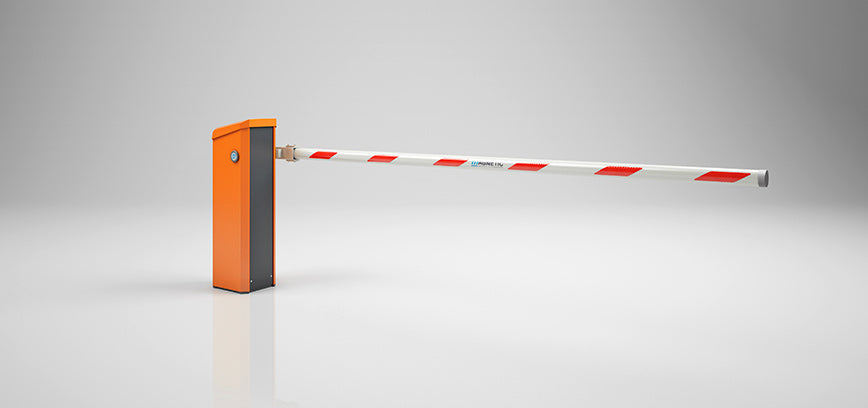

With an opening time of 0.3 seconds, Magnetic Toll HiSpeed 2 barriers are perfect for high-use toll systems on highways, freeways, expressways, and more. This field reversible Magnetic Toll system features the MGC-H controller that is EN 13849 compliant and is easy to configure with an LCD screen. Do you need your barrier opener to operate in heavy wind or snow? The MHTM MicroDrive drive unit has a high torque that guarantees the best operation in the most severe weather conditions. The motor, motor control and gearing are all combined in one compact drive unit. The included 6 ft boom allows you to set up and use your barrier right away. The equipped swing-away flange prevents damage to the barrier and vehicle in the event of an unpermitted or forced drive-through.
Includes:
MGC-H Controller
6' Foam Boom
Swing Away Flange
White Powder-Coated Aluminum Housing
Specifications:
Barrier Width:
Maximum 6 ft (1.8 m)
Opening/Closing Time and Cycles:
0.3 seconds; rated for 10 million cycles
Drive Technology:
MHTM MicroDrive high-torque, maintenance-free motor
Integrated Components:
MGC-H controller with LCD display and automatic flange system
Features:
0.3 Second Open and Close Speeds
10 Million Opening and Closing Cycles
Maximum Power Consumption of 450W
2 Year Warranty
Download pdf
Talk to a Specialist
  • Ships in 1–2 daysMost products, from order receipt
  • Gates & arms varyMay need extra manufacturing lead time
  • Magnetic AccessAuthorized distributor
  • Real tech support321-250-2500

For rapid toll processing

Rapid, reliable, and economical processing of vehicles is essential when collecting toll charges at bridges, tunnels and on roads. Toll series barriers from Magnetic have been specially designed for this situation. The innovative MHTM™ drive at the heart of the barriers is characterized by its speed, lack of maintenance and energy efficiency, thus keeping long-term costs down. The Toll barriers can be adapted to meet individual requirements: there are five models with opening times from

1.3–0.3 s, which can be equipped with a variety of control devices, flanges and barrier arms. All barrier packages are provided with a swing-away flange as standard. In the case of a collision with a vehicle, the barrier arm is released and can be manually re-engaged afterwards. This protects the barrier arms, vehicle, and drive unit. There is also the optional auto-return swing-away flange for the foam barrier arms, which automatically re-engages after a collision with a vehicle.

Effective toll processing

Toll barriers from Magnetic are the optimum solution for all toll applications thanks to their speed, reliability and low operating costs. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!

Innovative drive technology

The MHTM™ drive unit operates energy-efficiently,quietly, and maintenance free. Its high torque ensures best possible operation even under extreme weather conditions.

Individual configuration

Five models, three control units, three different barrier arm types – the Toll barriers can be individually adapted to your requirements. Our staff can help you figure out which configuration best suits your application.

Easy access to components

Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.
