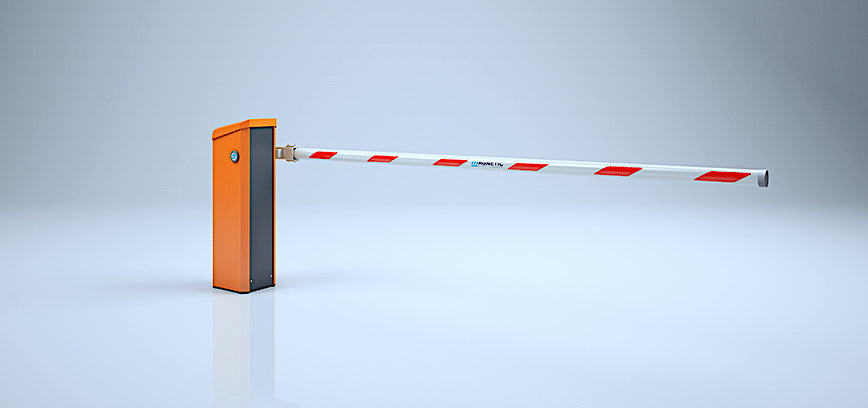

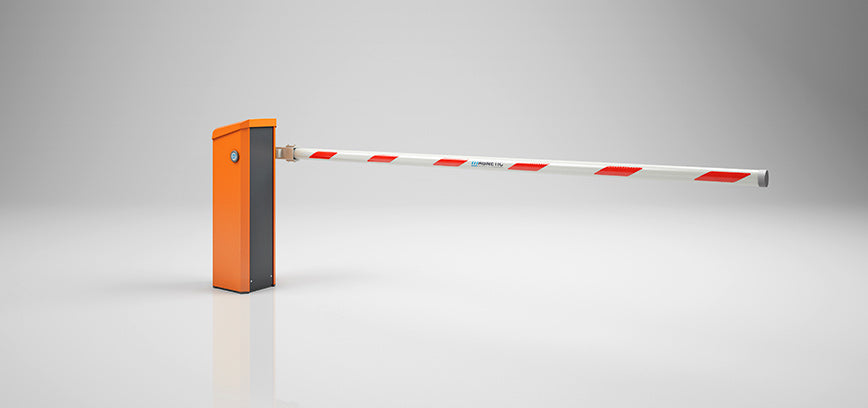

Toll TOLL HISPEED-RA01000 — Round Swing, MGC-H, Orange
Magnetic Access
Toll TOLL HISPEED-RA01000 — Round Swing, MGC-H, Orange
- Ships in 1–2 daysMost products, from order receipt
- Gates & arms varyMay need extra manufacturing lead time
- Magnetic AccessAuthorized distributor
- Real tech support321-250-2500
For rapid toll processing
Rapid, reliable, and economical processing of vehicles is essential when collecting toll charges at bridges, tunnels and on roads. Toll series barriers from Magnetic have been specially designed for this situation. The innovative MHTM™ drive at the heart of the barriers is characterized by its speed, lack of maintenance and energy efficiency, thus keeping long-term costs down. The Toll barriers can be adapted to meet individual requirements: there are five models with opening times from
1.3–0.3 s, which can be equipped with a variety of control devices, flanges and barrier arms. All barrier packages are provided with a swing-away flange as standard. In the case of a collision with a vehicle, the barrier arm is released and can be manually re-engaged afterwards. This protects the barrier arms, vehicle, and drive unit. There is also the optional auto-return swing-away flange for the foam barrier arms, which automatically re-engages after a collision with a vehicle.
Effective toll processing
Toll barriers from Magnetic are the optimum solution for all toll applications thanks to their speed, reliability and low operating costs. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!
Innovative drive technology
The MHTM™ drive unit operates energy-efficiently,quietly, and maintenance free. Its high torque ensures best possible operation even under extreme weather conditions.
Individual configuration
Five models, three control units, three different barrier arm types – the Toll barriers can be individually adapted to your requirements. Our staff can help you figure out which configuration best suits your application.
Easy access to components
Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.
| Features | Toll | Toll Pro | Toll HighSpeed | Toll HighSpeed 2 |
|---|---|---|---|---|
| Standard color | RAL 2000, RAL 9010 | RAL 2000, RAL 9010 | RAL 2000, RAL 9010 | RAL 2000, RAL 9010 |
| Barrier arm types | round, octagonal, foam | round, foam | round, foam | round, foam |
| Control system | MGC-A or MGC Pro-A | MGC-A or MGC Pro-A | MGC-H | MGC-H |
| Number of digital inputs | ||||
| Number of relay/ digital outputs | 6/4 | 6/4 | 6/4 | 6/4 |
| Closing speed | adjustable | adjustable | adjustable | adjustable |
|
|---|
