FEIG MNE1-R230-A
Couldn't load pickup availability
Single-Channel Inductive Loop Detector
100-240 VAC
11 PIN
-

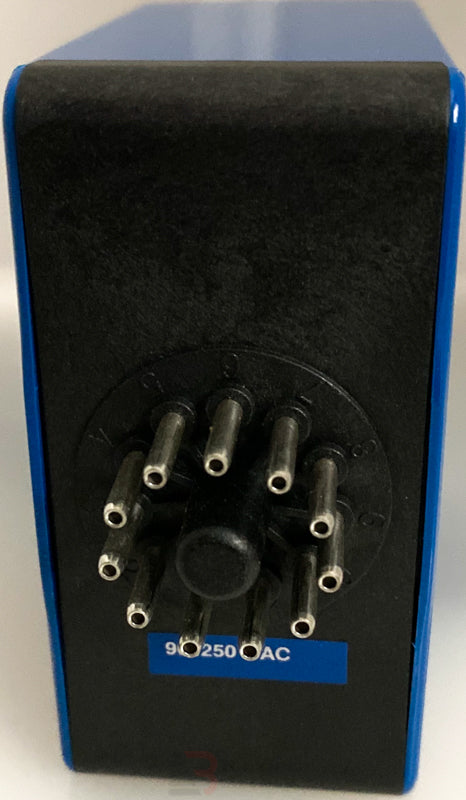

11-pole circular connector
Galvanic separation of loop and detector electronics
Automatic system adjustment directly after power-on
Sensitivity adjustment independent of loop inductivity
Loop busy signal emitted by LED-display
Potential-free relay contacts at the outputs
Loop fault message via LED-signal
Indication of historical loop fault
Continuous rebalancing of frequency drifts in order to avoid environmental influences

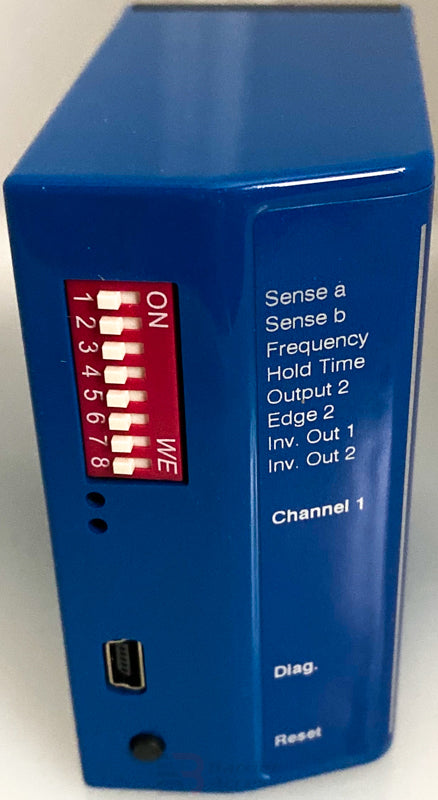

Diagnostics by external Service Program via USB-Mini connector
Dimensions (H x W x L)
Power Supply Operating Temp. Relays
76 x 38 x 71 mm
-R24: 10-30 V AC/DC, max.1 W
-R230: 100-240 V AC, 50-60 Hz, max. 2 W
-37 °C...+70 °C
max. 2 A, 230 VAC, 60 W/125 VA
Inductivity
20-700 μH, recommended 100-300 μH
Frequency
30-130 kHz, 2 steps
Supply Line Max 200m
Resistance
max. 20 Ohm, incl. Loop Supply Line
Power, Loop, relay.
11-pole circular connector
Diagnostic
USB-Mini AB
