FAAC

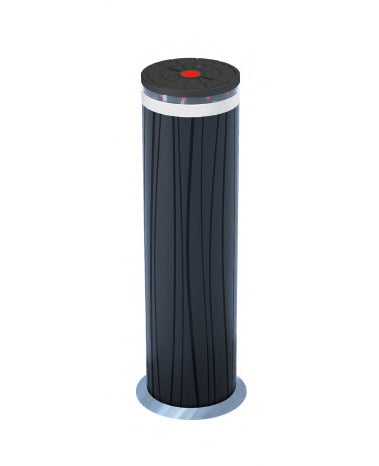

FAAC JS 80 R Removable Security Bollard (50 mph certified)
Regular price
$ 11,799.00
Regular price
Sale price
$ 11,799.00
Unit price
per
Couldn't load pickup availability
FAAC JS 80 R — Removable Security Bollard (50 mph certified). Part of the FAAC Traffic Bollards range.
- Type: Removable
- Height: 39.4 in (1,000 mm)
Features
- Removable cylinder to allow temporary access
- Interchangeable protective sleeve so that the bollard is always just like new
- Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards. Able to withstand impact with a truck driven at 50 mph (80 km/h). P1 penetration rating
- "Shallow Mount" design: minimum dig depth required
Technical Specifications
| Model | JS 80 R | JS 80 R Stainless Steel |
|---|---|---|
| Cylinder height from ground | 39.4 in (1,000 mm) | |
| Cylinder diameter | 10.8 in (275 mm) | |
| Cylinder treatment | Cataphoresis | |
| Protective sleeve type | mDure® | AISI 316 stainless steel + mDure® |
| Reflective strip height | 2.16 in (55 mm) | |
| Standard reflecting strip color | White | |
| Head material type | Aluminum | |
| Head treatment type | Rilsan® anticorrosive resin | |
| Weight of underground base | 265 lb (120 kg) | |
| Type of use | Perimeter Security | |
| Break in resistance | 1,852,000 J | |
| Traffic bollard weight | 705 lb (320 kg) | |
Models & Part Numbers
| Finish | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|
| Painted Steel / mDure® | 117601 | $11,799 | |
| Stainless Steel AISI 316L / mDure® | 117801 | $14,753 |
Package Contents
Painted steel version comes with
- Steel cylinder with cataphoretic coating
- mDure® protective sleeve, anthracite, with exclusive FAAC aesthetic finish
- Flashing light ring with LED
- Reflector strip
Stainless steel version comes with
- Steel cylinder with cataphoretic coating
- mDure® protective sleeve with satin-finish stainless steel
- Flashing light ring with LED
- Reflector strip
Notes
- Underground base (117902) is required for install.
- The power source (24V) and cable (2xAWG14) for the flashing light are not included.
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| Underground Base JS R / JS F (required for install) | 117902 | $4,919 |
| Base Cover JS R / JS F | 117904 | $297 |
