FAAC

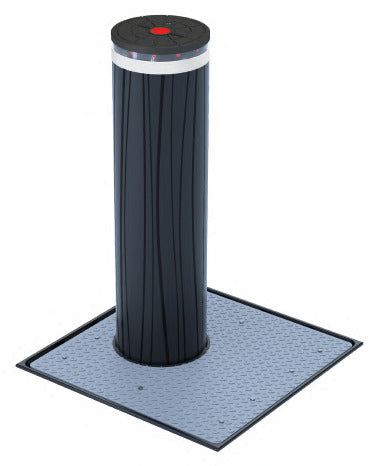

FAAC JS 80 HA Retractable Security Bollard (50 mph certified)
SKU
117501
$ 51,624.00
- Ships in 1–2 daysMost products, from order receipt
- Gates & arms varyMay need extra manufacturing lead time
- FAACAuthorized distributor
- Real tech support321-250-2500
- Maintenance can be carried out without removing the bollard. No lifting equipment required
- Interchangeable protective sleeve so that the bollard is always just like new
- Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards. Able to withstand impact with a truck driven at 50 mph (80 km/h). P1 penetration rating, still operational after impact
| Models | JS 80 HA | JS 80 HA Stainless Steel | JS 80 HA EFO | JS 80 HA EFO Stainless Steel |
|---|---|
| Type of operator | Hydraulic |
| Cylinder height from ground | 39.4 in (1,000 mm) |
| Cylinder diameter | 10.8 in (275 mm) |
| Cylinder treatment | Cataphoresis |
| Protective sleeve type | mDure® | AISI 316 stainless steel + mDure® | mDure® | AISI 316 stainless steel + mDure® |
| Reflective strip height | 2.16 in (55 mm) |
| Standard reflecting strip color | White |
| Head material type | Aluminum |
| Head treatment type | Rilsan® anticorrosive resin |
| Rising time | Approx 6 s |
| Quick rise device | No | No | Yes | Yes |
| Emergency rising time | - | - | Approx 1.5 s | Approx 1.5 s |
| Release device | Yes |
| Descent time | Approx 2 s |
| Power supply voltage | 207-243V ~ 50/60 Hz |
| Max. power | 3,500 W |
| Type of use | Perimeter Security |
| Break in resistance | 1,852,000 J |
| Operating ambient temperature | 5°F - 149°F (-15 °C / +80 °C) |
| Operating ambient temperature with heater | -40°F - 149°F (-40°C / +80°C) |
| Hydraulic pump unit protection class | IP67 |
| Load class (EN 124) | C250 (25 metric ton) |
| Traffic bollard weight | 1,477 lb (670 kg) | 1,543 lb (700 kg) | 1,477 lb (670 kg) | 1,543 lb (700 kg) |
| Pit weight | 441 lb (200 kg) |
