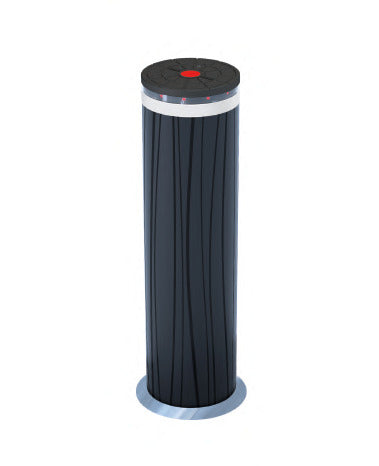

    FAAC JS 48 R Removable Security Bollard (30 mph certified)

    $ 8,602.00
    $ 8,602.00
    Sale Sold out
    Finish

    FAAC JS 48 R — Removable Security Bollard (30 mph certified). Part of the FAAC Traffic Bollards range.

    • Type: Removable
    • Height: 39.4 in (1000 mm)

    Features

    • Removable cylinder to allow temporary access
    • Interchangeable protective cover so that the bollard is always just like new
    • Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards. Able to withstand impact with a truck driven at 30 mph (48 km/h). P1 penetration rating
    • "Shallow Mount" design: minimum dig depth required

    Technical Specifications

    Model JS 48 R JS 48 R Stainless Steel
    Cylinder height from ground 39.4 in (1,000 mm)
    Cylinder diameter 10.8 in (275 mm)
    Cylinder treatment Cataphoresis
    Protective cover type mDure® AISI 316 stainless steel + mDure®
    Reflective strip height 2.16 in (55 mm)
    Standard reflecting strip color White
    Head material type Aluminum
    Head treatment type Rilsan® anticorrosive resin
    Weight of underground base 265 lb (120 kg)
    Type of use Perimeter Security
    Break in resistance 673,000 J
    Traffic bollard weight 397 lb (180 kg)

    Models & Part Numbers

    Finish Part No. Shipping Wt (approx) List Price
    Painted Steel / mDure® 117111 $8,602
    Stainless Steel AISI 316L / mDure® 117301 $11,556

    Package Contents

    Painted steel version comes with

    • Steel cylinder with cataphoretic coating
    • mDure® protective sleeve, anthracite, with exclusive FAAC aesthetic finish
    • Flashing light ring with LED

    Stainless steel version comes with

    • Steel cylinder with cataphoretic coating
    • mDure® protective sleeve with satin-finish stainless steel
    • Flashing light ring with LED

    Notes

    • Underground base (117902) is required for install.
    • The power source (24V) and cable (2xAWG14) for the flashing light are not included.

    Accessories & Compatible Components

    Description Part No. List Price
    Underground Base JS R / JS F (required for install) 117902 $4,919
    Base Cover JS R / JS F 117904 $297
