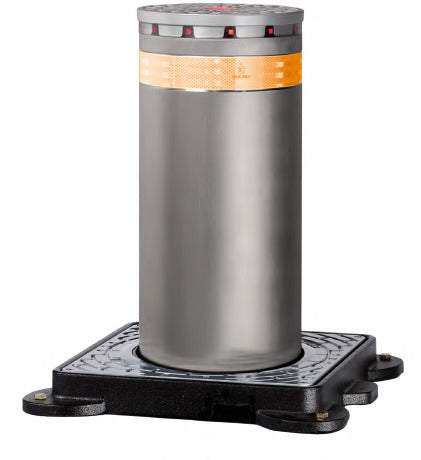

FAAC J275 SA Semi-Automatic Retractable Traffic Bollard
Regular price
$ 8,125.00
Regular price
Sale price
$ 8,125.00
Unit price
per
Couldn't load pickup availability
FAAC J275 SA — Semi-Automatic Retractable Traffic Bollard. Part of the FAAC Traffic Bollards range.
- Type: Semi-automatic
- Height: 23.6 in (600 mm)
Features
- Power supply and wiring not required
- Simple and safe movement, thanks to the special release key
- Supplied with the main accessories already included
- Low position lock guaranteed against accidental release
- Extremely simple maintenance
Technical Specifications
| Drive | Gas actuator |
| Cylinder stroke | 23.6 in (600 mm) |
| Cylinder diameter | 10.8 in (275 mm) |
| Cylinder material, standard version | Fe 360 steel 0.28 in (7mm) thickness |
| Standard cylinder surface treatment | Cataphoresis and polyester powder painted RAL 7021 metallic dark grey |
| Cylinder material, stainless steel version | AISI 316 satin finished 0.24 in (6mm) thickness |
| Cylinder head | Aluminum RAL 9006 |
| Rising | Key release for automatic rising, with gas actuator |
| Lowering | Key release to lower, with pressure on the top of the cylinder |
| Standard reflecting strip | Height 2.2 in (55 mm) |
| Impact resistance | 38 KJoules/painted steel - 67 KJoules/stainless steel |
| Crash resistance | 128 KJoules/painted steel - 207 KJoules/stainless steel |
| Total weight (Bollard + Pit) | 154 + 121 lb (70+55kg) |
| Foundation size (LxWxH) | 39 x 39 x 49 in (1000x1000x1250 mm) |
Models & Part Numbers
| Finish | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|
| Painted Steel (RAL 7021) | 116050 | 280 lb (127 Kg) | $8,125 |
| Satin Finish Stainless Steel AISI 316 | 116060 | 280 lb (127 Kg) | $10,125 |
Package Contents
Painted steel version features
- Cylinder in steel, thickness 0.28 in (7 mm) cataphoresis treatment and painted
- Powder paint dark grey metallised RAL 7021
- Flashing lights ring with central LED
- Mechanical lock in the up position with special release key (2 keys included)
Stainless steel version features
- Cylinder in stainless steel thickness 0.24 in (6 mm) satin-finished
- Flashing lights ring with central LED
- Mechanical lock in the up position with special release key (2 keys included)
Notes
- The power supply unit (24V DC) and the cable for the flashing light are not supplied.
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| JP 275/600 Pit for Bollard H600 including Counterframe | 1161001 | $1,474 |
| JC275 Pit Cover | 116201 | $404 |
| Bollard Release Key (Qty 5) | 390084 | $129 |
