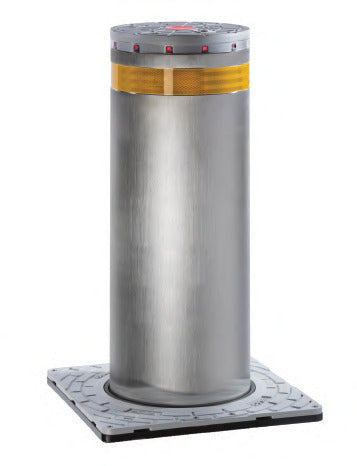

FAAC J275 HA 2K20 Retractable Security Bollard
Regular price
$ 21,397.00
Regular price
Sale price
$ 21,397.00
Unit price
per
Couldn't load pickup availability
FAAC J275 HA 2K20 — Retractable Security Bollard. Part of the FAAC Traffic Bollards range.
- Type: Hydraulic automatic
- Height: 31.5 in (800 mm)
Features
- Performance certified according to PAS 68 and IWA 14-1 standards. Able to withstand impact with a 16,500 lb truck driven at 28 mph in a dual unit configuration
- Guaranteed for high frequency use
- Simple maintenance (just one person needed)
- Hydraulic control unit integrated in the bollard
- Built-in hydraulic slow down for softer landing in opening
- Anti-tamper head protected by a security lock with encrypted key to prevent unauthorized opening
Technical Specifications
| Model | J275 HA 2K20 | J275 HA 2K20 Stainless Steel |
|---|---|---|
| Drive | Hydraulic Unit | |
| Cylinder stroke | 31.5 in (800 mm) | |
| Cylinder diameter | 10.8 in (275 mm) | |
| Cylinder treatment | Cataphoresis and polyester painting | AISI 316 satin-finish stainless steel |
| Reflective strip height | 2.16 in (55 mm) | |
| Standard reflecting strip color | White | |
| Rising time | Approx. 8 s | |
| Descent time | Approx 4.5 s | |
| Emergency descent device | YES (with optional solenoid valve unit) | |
| Emergency descent time | Approx. 2 s | |
| Rising obstacle detection device | YES (with optional pressure switch) | |
| Release device | Yes | |
| Slow lowering | Yes | |
| Power supply voltage | 220-240V - 50/60Hz | |
| Max. power | 575 W | |
| Hydraulic pump unit protection class | IP67 | |
| Type of use | Perimeter protection | |
| Break in resistance | 673,000 J dual unit | |
| Pit weight | 220 lb (100 kg) | |
| Traffic bollard weight | 375 lb (170 kg) | |
| Operating ambient temperature | 5°F - 131°F (-15 °C / +55 °C) | |
| Operating ambient temperature with heater | -13°F - 131°F (-25 °C / +55 °C) | |
| Load class (EN 124) | C250 (25 metric ton) | |
Models & Part Numbers
| Finish | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|
| Painted Steel | 116401 | $21,397 | |
| Satin Finish Stainless Steel AISI 316 | 116431 | $24,943 |
Package Contents
Painted steel version comes with
- Steel cylinder with cataphoresis treatment and metallised dark grey powder coated painting
- Flashing LED lights ring
- Audible buzzer (active during movement)
- Anti-tampering head with encrypted manual release key
- Hydraulic lock in raised position (in case of a power failure)
Stainless steel version comes with
- AISI 316L satin-finished stainless steel cylinder
- Flashing LED lights ring
- Audible buzzer (active during movement)
- Anti-tampering head with encrypted release key
- Hydraulic lock in raised position (in case of a power failure)
Notes
- JE275 control unit controls up to three J275 HA 2K20 bollards and includes enclosure.
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| JE275 Bollard Control Unit (includes enclosure) | 117300 | $833 |
| Pit J275 2K20 | 116140 | $2,406 |
| JH275 Pit Heater (extends operation down to -13°F / -25°C) | 116200 | $953 |
| JC275 Pit Cover | 116201 | $404 |
| J275 HA 2K Pressure Switch | 116210 | $164 |
| J275 HA 2K Solenoid Valve Unit | 116211 | $481 |
