FAAC

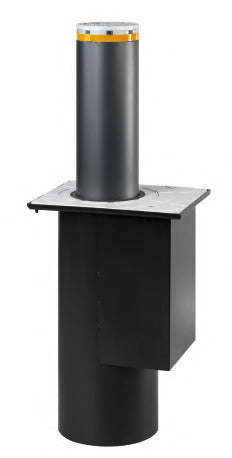

FAAC J200 SA Semi-Automatic Retractable Bollard
Regular price
$ 6,125.00
Regular price
Sale price
$ 6,125.00
Unit price
per
Couldn't load pickup availability
FAAC J200 SA — Semi-Automatic Retractable Bollard. Part of the FAAC Traffic Bollards range.
- Type: Semi-automatic
- Height: 23.6 in (600 mm)
Features
- Power supply and wiring not required
- Simple and safe movement, with easy to use unlocking key
- A streamlined product, configurable by selecting the desired installation accessories
- Easy to transport, store and install, thanks to the limited weight of the product
- Low position lock guaranteed against accidental release
- Simplified maintenance (just one person is needed)
Technical Specifications
| Type of operator | Single-acting gas actuator |
| Height of cylinder from ground | 23.6 in (600 mm) |
| Cylinder diameter | 7.9 in (200 mm) |
| Cylinder material, standard version | Steel S235JRG2 EN 10277 0.24 in (6mm) thick |
| Cylinder surface treatment | Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 |
| Cylinder material, stainless steel version | AISI 316 satin finished 0.24 in (6mm) thickness |
| Cylinder head | Aluminum RAL 9006 |
| Release device | Key operated (supplied) |
| Reflecting strip height | 1 in (25 mm) |
| Standard reflecting strip color | Orange |
| Overall Weight | 181 lb (82 kg) |
| Dimensions WxDxH | 16x20x32 in (400x500x800 mm) |
| Foundation size (LxWxH) | 28x28x43 in (700x700x1100 mm) |
Models & Part Numbers
| Finish | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|
| Painted Steel (RAL 7021) | 116508 | 205 lb (93 Kg) | $6,125 |
| Satin Finish Stainless Steel AISI 316L | 116509 | 205 lb (93 Kg) | $8,371 |
Package Contents
Painted steel version features
- Cylinder thickness 0.19 in (5 mm) cataphoresis treatment and painted
- Powder painted dark grey metallised RAL 7021
- Supporting structure to cement, cataphoresis treatment (pit not required)
Stainless steel version features
- Cylinder in stainless steel thickness 0.19 in (5 mm) satin-finished
- Lock in raised position with special release key
- Supporting structure to cement, cataphoresis treatment (pit not required)
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| LED Lights Kit for J200HA | 116504 | $216 |
| Bollard Release Key (Qty 5) | 390084 | $129 |
