FAAC

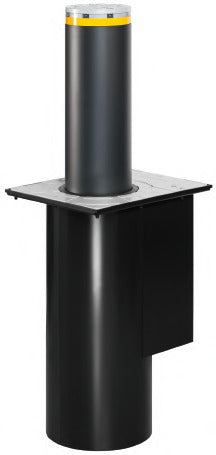

FAAC J200 HA Automatic Retractable Bollard
Regular price
$ 8,426.00
Regular price
Sale price
$ 8,426.00
Unit price
per
Couldn't load pickup availability
FAAC J200 HA — Automatic Retractable Bollard. Part of the FAAC Traffic Bollards range.
- Type: Automatic
- Height: 23.6 in (600 mm)
Features
- Easy to transport, store and install, thanks to the self-supporting structure - pit not required - and to its limited weight
- A streamlined product, configurable by selecting the desired installation accessories
- Simplified maintenance (just one person is needed)
- Fast and quiet movement
Technical Specifications
| Drive | Hydraulic operator |
| Cylinder stroke | 23.6 in (600 mm) |
| Cylinder diameter | 7.9 in (200 mm) |
| Cylinder material, standard version | Steel S235JRG2 EN 10277 0.24 in (6mm) thick |
| Cylinder surface treatment | Cataphoresis and polyester powder painted RAL 7021 metallic dark grey |
| Cylinder material, stainless steel version | AISI 316 satin finished 0.24 in (6mm) thickness |
| Cylinder head | Aluminum RAL 9006 |
| Rise time | Approx. 5 sec (measured at 230V) |
| Descent time | Approx. 7 sec (measured at 230V) |
| Input voltage | 220-240 VAC; 50 / 60 Hz |
| Power | 230 W (measured at 230V) |
| Protection class | IP 67 |
| Recommended use | Use in residential applications |
| Reflecting strip height | 1 in (25 mm) |
| Manual lowering operation | With hydraulic circuit mechanical release |
| Total weight | 198 lb (90 kg) |
| Operating ambient temperature | 5°F - 131°F (-15 °C / +55 °C) |
| Operating ambient temperature with heater (optional) | -13°F - 131°F (-25 °C / +55 °C) |
| Overall dimensions | 16 x 20 x 32 in (400x500x800 mm) |
| Foundation size (LxWxH) | 28x28x43 in (700x700x1100 mm) |
Models & Part Numbers
| Finish | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|
| Painted Steel (RAL 7021) | 116500 | 205 lb (93 Kg) | $8,426 |
| Satin Finish Stainless Steel AISI 316 | 116505 | 205 lb (93 Kg) | $10,400 |
Package Contents
Painted steel version features
- Steel cylinder, thickness 0.24 in (6 mm) cataphoresis treatment and painted
- Powder paint dark grey metallised RAL 7021
- Hydraulic lock in the up position (in the event of a power outage) with special release key
- Support structure to be cemented, cataphoresis treatment (pit not required)
Stainless steel version features
- Cylinder in stainless steel thickness 0.24 in (6 mm) satin-finished
- Hydraulic lock in the up position (in the event of a power outage) with special release key
- Supporting structure to be cemented, cataphoresis treatment (pit not required)
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| JE275 Bollard Control Unit (includes enclosure) | 117300 | $833 |
| Pit Heater for J200HA / JS HA | 117906 | $983 |
| Solenoid Valve and Pressure Switch for J200HA | 116502 | $864 |
| Acoustic Buzzer for J200HA | 116503 | $83 |
| LED Lights Kit for J200HA | 116504 | $216 |
