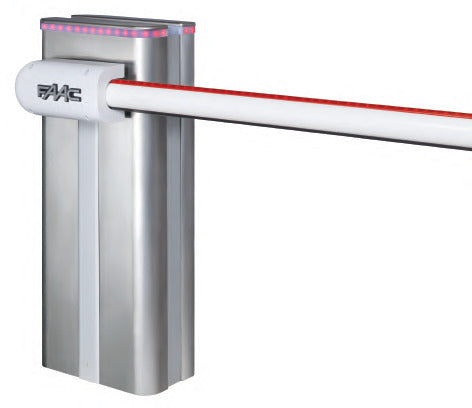

    FAAC B680H Hybrid Automatic Barrier

    $ 4,309.00
    $ 4,309.00
    Sale Sold out
    Configuration
    Cover Color

    FAAC B680H — Hybrid Automatic Barrier. Part of the FAAC Automatic Barriers range.

    • Maximum lane opening width: 6.5-26.2 ft
    • Opening time: 1.5-6 s

    Features

    • Hybrid technology: Hydraulic + Brushless motor
    • Over 2,000,000 continuous use cycles without special maintenance
    • Optional battery back-up
    • Advantage of modular items: only one barrier model and two springs for sectional barrier arms measuring 7.5 to 27.2 ft, right or left version and for different speeds
    • Removable covers available in 4 colors or stainless steel
    • Opening speed (programmable): from 1.5 seconds for 7.5 ft barrier arms up to 6 seconds for 27.2 ft barrier arms
    • Easy-to-program and technologically advanced control unit: Integrated encoder (with reverse in the event of obstacle), two integrated Loop Detectors, and Master/Slave logic
    • Optional: integrated flashing LED traffic light with anti-vandalism system and LED lights for barrier arm
    • Compatible with 620 and 640 foundation plate

    Technical Specifications

    B680H Barrier

    Power supply voltage Switching: 100 to 240 Vac 50 (60) Hz
    Electric motor Brushless 36 Vdc
    Absorbed power 240 W
    Absorbed current 1.1 A (at 230 V)
    Motor rotation speed 1,000 to 6,000 r.p.m.
    Pump flow rate 3.2 l/min (max)
    Electronic deceleration Absolute magnetic encoder
    Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
    Weight 187 lb (143 lb body + 44 lb cover)
    Type of oil FAAC HP OIL
    Barrier body treatment 100 micron epoxy zinc-plating anti-corrosion treatment + paint
    Protection class IP56 (TÜV certified)
    Type of barrier arm Round with safety edge and optional lights
    Barrier arm length From 7.5 ft to 27.2 ft
    Opening time From 1.5 s to 6 s
    Use frequency Continuous (100%)

    E680 Control Board

    Max motor load 240 W
    Accessories power supply 24 Vdc
    Max accessories load 800 mA
    Operating ambient temperature -4°F - 149°F (-20°C - +65°C)
    Protection fuses 4 self-resetting
    Pause time Programmable (from 0 to 4.1 min)
    Motor power Programmable on 50 levels
    Motor speed Programmable on 50 levels
    Terminal board inputs Loop 1, Loop 2, Open, Close, Safety during closing, Stop, Emergency, Power Supply 36VDC, Battery XBAT, BUS 2-Easy
    Connector inputs Encoder, Bar release sensor, Integrated flashing light, USB (for updating firmware)
    Terminal board outputs Flashing lamp 24V, Brushless motor, Accessories power supply 24 VDC, 4 programmable outputs (one with relay)

    Models & Part Numbers

    Configuration Cover Color Part No. Shipping Wt (approx) List Price
    S Kit (body + cover + S bracket + balancing spring) White RAL 9010 1046801WH $4,309
    S Kit (body + cover + S bracket + balancing spring) Grey RAL 9006 1046801GY $4,309
    S Kit (body + cover + S bracket + balancing spring) Red RAL 3020 1046801RD $4,309
    S Kit (body + cover + S bracket + balancing spring) Blue RAL 5011 1046801BL $4,309
    L Kit (body + cover + L bracket + balancing spring) White RAL 9010 1046801WHL $5,440
    L Kit (body + cover + L bracket + balancing spring) Grey RAL 9006 1046801GYL $5,440
    L Kit (body + cover + L bracket + balancing spring) Red RAL 3020 1046801RDL $5,440
    L Kit (body + cover + L bracket + balancing spring) Blue RAL 5011 1046801BLL $5,440
    Body B680H UL/CSA only (built-in E680, no cover) No Cover 1046801 $3,578

    Package Contents

    S Kits include

    • Body B680H
    • Cover
    • S bracket
    • Balancing spring

    L Kits include

    • Body B680H
    • Cover
    • L bracket
    • Balancing spring

    20 ft L arm configuration example

    Qty Description Part Number
    1 B680H L Kit 1046801WHL
    1 L coupling 428616
    1 L barrier arm first section 13 ft 428048
    1 L barrier arm final section 7 ft 428049
    4 Reflective strip kit 490117

    23 ft L arm configuration example

    Qty Description Part Number
    1 B680H L Kit 1046801WHL
    1 L coupling 428616
    1 L barrier arm first section 13 ft 428048
    1 L barrier arm final section 10 ft 428050
    4 Reflective strip kit 490117

    26 ft L arm configuration example

    Qty Description Part Number
    1 B680H L Kit 1046801WHL
    1 L coupling 428616
    1 L barrier arm first section 13 ft 428048
    1 L barrier arm final section 13 ft 428051
    5 Reflective strip kit 490117

    Notes

    • Make sure to order the barrier arm when ordering the kit.
    • Kits with blue and red covers have a non-standard lead time.
    • The B680H body package (1046801) without cover includes: barrier with control unit and absolute encoder, hydraulic motion transmission system, accessories for installation, triangular release key. It does not include the bracket with balance spring (sold separately).
    • Right or left barrier version is determined by looking at the barrier from the door side; the door usually faces the inside of the property.

    Accessories & Compatible Components

    Description Part No. List Price
    B680H S Arm 6.5 ft Opening (7.5 ft one-piece barrier arm) - Right 428045R.1 $289
    B680H S Arm 6.5 ft Opening (7.5 ft one-piece barrier arm) - Left 428045L.1 $289
    B680H S Arm 9.8 ft Opening (10.8 ft one-piece barrier arm) - Right 428042R.1 $345
    B680H S Arm 9.8 ft Opening (10.8 ft one-piece barrier arm) - Left 428042L.1 $345
    B680H S Arm 13 ft Opening (14 ft one-piece barrier arm) - Right 428043R.1 $462
    B680H S Arm 13 ft Opening (14 ft one-piece barrier arm) - Left 428043L.1 $462
    B680H S Arm 16.4 ft Opening (17.4 ft one-piece barrier arm) - Right 428044R.1 $583
    B680H S Arm 16.4 ft Opening (17.4 ft one-piece barrier arm) - Left 428044L.1 $583
    B680H Lights Upcharge for S Arm 6.5 ft Opening (pre-installed on S arm kit) LED2M $204
    B680H Lights Upcharge for S Arm 9.8 ft Opening (pre-installed on S arm kit) LED3M $228
    B680H Lights Upcharge for S Arm 13 ft Opening (pre-installed on S arm kit) LED4M $246
    B680H Lights Upcharge for S Arm 16.4 ft Opening (pre-installed on S arm kit) LED5M $271
    B680H L Coupling 428616 $104
    B680H L Barrier Arm First Section 13 ft 428048 $595
    B680H L Barrier Arm Final Section 7 ft 428049 $510
    B680H L Barrier Arm Final Section 10 ft 428050 $528
    B680H L Barrier Arm Final Section 13 ft 428051 $632
    B680H 20 ft L Barrier Arm Kit 428049/20.5 $1,308
    B680H 23 ft L Barrier Arm Kit 428050/23.5 $1,332
    B680H 26 ft L Barrier Arm Kit 428051/26.5 $1,433
    B680H Cover RAL 9006 Grey 416019 $1,011
    B680H Cover RAL 9010 White 416018 $1,011
    B680H Cover RAL 3020 Red 416016 $1,011
    B680H Cover RAL 5011 Blue 416017 $1,011
    B680H Cover Stainless Steel 416020 $3,578
    B680H S Bracket and Balancing Spring 428436 $434
    B680H L Bracket and Balancing Spring 428437 $856
    B680H Pivoting Round Barrier Arm - Length 9.8 ft (3 m) 428176 $671
    B680H Stainless Steel Breakaway Bracket Kit with Sensor 428163.5 $1,189
    B680H Foundation Plate 490139 $210
    Flashing Light on Barrier Cover (LED Lights Ring) 410033 $329
    B680H Spring S (for pivoting round barrier arms) 63000169 $348
    Kit for Connecting Barrier Arm Lights 390992 $70
    Barrier Arm Lights 36 ft (11 m) 390993 $246
    Barrier Skirt Kit 6.5 ft (2 m) 428441 $491
    Barrier Skirt Kit 10 ft (3 m) 428446 $647
    E680 Electronic Board for B680H 63003452 $1,103
    B680H Battery Backup Kit 3545.1 $583
    Reflective Strip Kit 490117 $28
    Articulated Barrier Arm Kit for S Round Barrier Arm 13 ft (4 m) max 428444 $933
    Sequencer 2850.1 $270
    B680H Heater 2692.1 $480
    RP1 433 RC Plug-in Receiver 1 Channel (Rolling Code 433MHz) 787856 $62
    Anti-vandal Valve for B680H 401069 $489
    B680H Barrier Arm Fork Support 428806 $433
    B680H Break Out Sensor for Pivoting Round Barrier Arms 390828 $188
    B680H Adjustable End Foot for Arms 428805 $239
    B680H Anti-panic Unit 230 V 401051 $1,182
    B680H Spare S Arm 6.5 ft Opening (7.5 ft one-piece barrier arm) 428045 $289
    B680H Spare S Arm 9.8 ft Opening (10.8 ft one-piece barrier arm) 428042 $345
    B680H Spare S Arm 13 ft Opening (14 ft one-piece barrier arm) 428043 $462
    B680H Spare S Arm 16.4 ft Opening (17.4 ft one-piece barrier arm) 428044 $583
    B680H Articulated S Barrier Arm Kit Upcharge - Standard Passage Height H=84 in (arm not included) 428444-84.1 $1,103
    B680H Articulated S Barrier Arm Kit Upcharge - Standard Passage Height H=98 in (arm not included) 428444-98.1 $1,103
    B680H Articulated S Barrier Arm Kit Upcharge - Custom Passage Height up to H=126 in (arm not included) 428444C.1 $1,385
    B680H Pre-cut LED Lights for S Arm 6.5 ft Opening LED2M.1 $250
    B680H Pre-cut LED Lights for S Arm 9.8 ft Opening LED3M.1 $280
    B680H Pre-cut LED Lights for S Arm 13 ft Opening LED4M.1 $300
    B680H Pre-cut LED Lights for S Arm 16.4 ft Opening LED5M.1 $320
