    FAAC

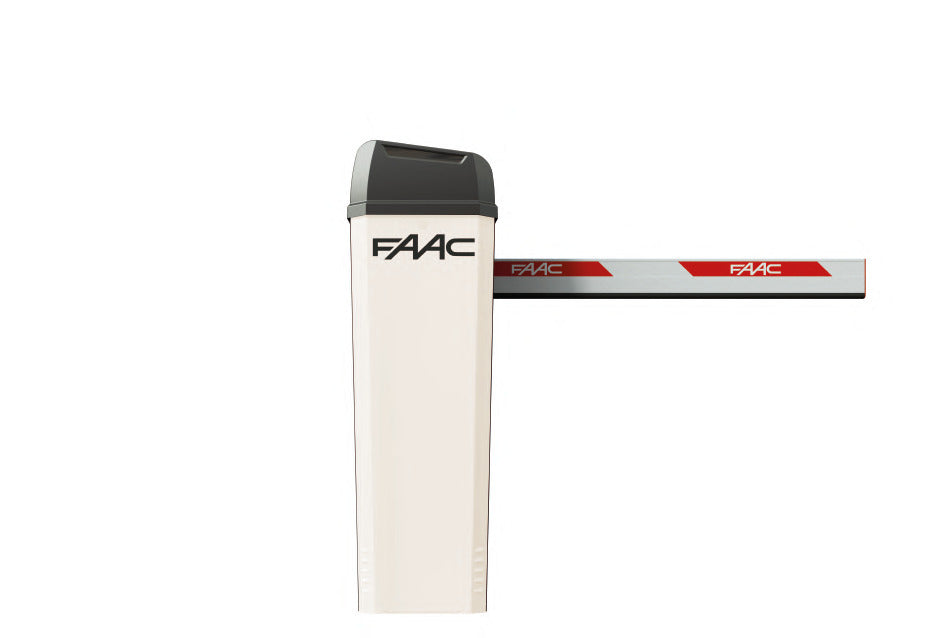

    FAAC B614 Automatic Barrier 24V

    $ 3,131.00
    $ 3,131.00
    Sale Sold out
    Configuration

    FAAC B614 — Automatic Barrier 24V. Part of the FAAC Automatic Barriers range.

    • Maximum lane opening width: 12 ft
    • Opening time: <2 s

    Features

    • Maximum anti-crushing safety with motor and integrated encoder
    • Speed adjustment and smooth operation
    • Integrated control unit allows for easy maintenance and intuitive programming

    Technical Specifications

    B614 Barrier

    Power supply voltage 115 Vac ± 10% ~ 50/60 Hz
    Electric motor 24V brushed
    Max. power 165 W
    Max. torque 300 Nm
    Material Steel
    Surface treatment Pre-hot dip galvanized, 20μm thick + polyester powder coated
    Encoder Incremental integrated in the motor
    Deceleration type Electronic + mechanical
    Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
    Weight 88 lb (40 Kg)
    Barrier body treatment 100 micron epoxy zinc-plating anti-corrosion treatment + paint
    Protection class IP55 (Electronic control unit) - IP44
    Type of barrier arm Rectangular with rubber edge and optional lights

    E614 Control Board

    Max motor load 150 W
    Accessories power supply 24 Vdc
    Max accessories load 500 mA
    Programming LED display and buttons
    Operating logic EP - A - AP - B - BC - C - P
    Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
    Protection fuses 1 (2.5A) + self-resetting fuses
    Work time Programmable (from 0 to 9.5 min)
    Pause time Programmable (from 0 to 9.5 min)
    Motor power Programmable on 50 levels
    Barrier arm speed Programmable on 10 levels
    Terminal board inputs Loop 1, Loop 2, Open, Close, Stop, Emergency, Power Supply, Battery XBAT
    Connector inputs Encoder, Bar release sensor, Integrated flashing light, USB (for updating firmware)
    Terminal board outputs Flashing lamp 24V, Motor, Accessories power supply 24 VDC, 4 programmable outputs (one with relay)

    Models & Part Numbers

    Configuration Part No. Shipping Wt (approx) List Price
    Special Kit (barrier RAL 9010 + arm bracket + balancing spring) 1046141WH $3,131
    Barrier Only 1046141 $2,943

    Package Contents

    Special Kit 1046141WH includes

    Qty Description Part Number
    1 B614 Barrier (RAL 9010) 1046141
    1 Barrier arm bracket 428342
    1 Balancing spring 721209

    Notes

    • Make sure to also order the barrier arm when ordering the kit.
    • Skirt kits and articulated arm kit may require additional springs.

    Accessories & Compatible Components

    Description Part No. List Price
    B614 Rectangular Barrier Arm 7 ft 7 in (Lane Opening 7 ft 1 in) 428088 $268
    B614 Rectangular Barrier Arm 9 ft 3 in (Lane Opening 8 ft 9 in) 428089 $292
    B614 Rectangular Barrier Arm 12 ft 6 in (Lane Opening 12 ft) 428090 $326
    B614 Barrier Arm Bracket 428342 $129
    B614 Articulated Barrier Arm Kit (max. ceiling height 10 ft / 3 m) 428137 $782
    Kit for Connecting Barrier Arm Lights 390992 $70
    Barrier Arm Lights 36 ft (11 m) 390993 $246
    Barrier Arm Light Connection Kit 390184 $163
    B614 7ft 7in Barrier Arm with Pre-installed LEDs 428088LED.1 $549
    B614 9ft 3in Barrier Arm with Pre-installed LEDs 428089LED.1 $600
    B614 12ft 6in Barrier Arm with Pre-installed LEDs 428090LED.1 $665
    E614 Control Unit (built-in) for B614 - 115V 63001068 $665
    B614 Double Spring Fittings Pack 490186 $35
    Balancing Spring for B614 721209 $58
    Barrier Skirt Kit 6.5 ft (2 m) 428441 $491
    Barrier Skirt Kit 10 ft (3 m) 428446 $647
    B614 Foundation Plate 490183 $82
    XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) 787453 $35
    Receiver XF 433 MHz 787831 $70
    B614 Integrated Flashing Traffic Light 410032 $175
    Triangle Manual Release Key 713002 $11
    B614 Battery Back-up Kit 3546.1 $496
