    FAAC

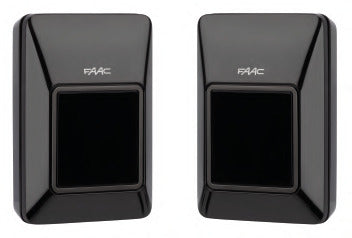

    FAAC XP 30 Photobeam Photocells Pair (Wall Photocell)

    $ 314.00
    $ 314.00
    Sale Sold out

    XP 30 Photobeam Photocells Pair (Wall Photocell) — FAAC part number 785105.

    • UL325 compliant when used with 455D, 780D, and E024U control boards

    Technical Specifications

    Power supply voltage 24V
    Photocells max distance 100 ft (30 m)
    Installation type wall/column
    Protection class IP54
    Alignment Automatic
    Auto-alignment angle +/- 7° (65 ft / 20 m) +/- 13.5° (16 ft / 5m)
    Dimensions (LxDxH) 2.2 x 0.85 x 3.1 in (55.4 x 21.5 x 78.4 mm)
    Absorbed current Rx (30 mA) + Tx (20 mA)
    Output types Relay - N.C./N.O.
    Contact Ratings 60 VA / 24 W
    Temperature -4°F - 131°F (-20°C - +55°C)

    Compatible With

    FAAC S418, 390, 415, 770, S450H, S800H ENC, 402, 422, 400, 750, C720 - C721, 746 ER, 844 ER
