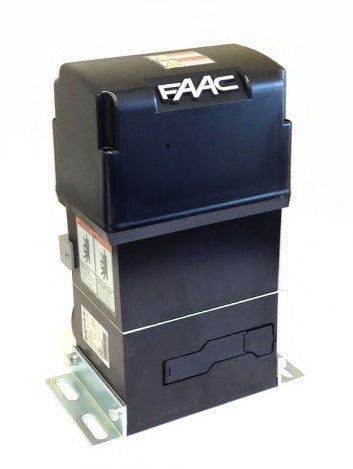

FAAC 844 ER Slide Gate Operator
Regular price
$ 3,068.00
Regular price
Sale price
$ 3,068.00
Unit price
per
Couldn't load pickup availability
FAAC 844 ER — Slide Gate Operator. Part of the FAAC Automated Systems for Slide Gates range.
- Max weight: 4000 lb
Features
- Ideal for commercial and industrial applications
- Maximum anti-crushing safety with a twin-disk oil-bath clutch and electronic board with encoder for reverse on obstacle
- Non reversing operator, no electric locks needed
- Key protected manual release device
- Magnetic limit switch
- Adjustable mounting bracket for flexible positioning
- Simplified programming via display and pushbuttons
- Compliant with UL325 for Class I,II,III and IV applications
Technical Specifications
| Model | Z16 | Z20 |
|---|---|---|
| Input voltage | 115 VAC (+10% -6%) | |
| Power | 650 W | |
| Current | 7A | |
| Electric motor | 0.65 KW (0.87 hp) | |
| Capacitor | 70 uF | |
| Traction and thrust force | 247 lbf (1100 N) | 198 lbf (880 N) |
| Motor rotation speed | 1700 r.p.m. | |
| Reduction ratio | 1:30 | |
| Gate max weight | 4000 lb (1814 Kg) | 2200 lb (998 Kg) |
| Gate speed | 0.63 ft/second (0.19 m/second) | 0.78 ft/second (0.24 m/second) |
| Gate max length | 131 ft (40 m) | 164 ft (50 m) |
| Use frequency | 70% | |
| Thermal protection on motor winding | 120 °C | |
| Clutch | Twin-disk in oil-bath | |
| Operating ambient temperature | -4°F - 149°F (-20°C - +65°C) | |
| Operator weight | 32 lb (14.5 Kg) | |
| Dimensions (L x D x H) | 10.8 x 7.5 x 15.3 in (275x191x336 mm) | |
| Protection class | IP 44 | |
Models & Part Numbers
| Title | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|
| Default Title | 1098371 | 44 lb (20 Kg) | $3,068 |
Package Contents
Package (844 ER Z16 pinion, for on-rack applications) includes
- Operator with Z16 pinion and control board 780D
- Limit switch magnets
- Manual release key
Notes
- Rack is not included.
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| Foundation Plate with Side and Height Adjustments (746/844) | 737816 | $98 |
| Galvanised Rack plus Fittings - 4 sections of 3.3 ft (1 m) each | 490122.1 | $301 |
| Pinion Z16 for Rack | 719130 | $75 |
| Pinion Z20 for Rack | 719167 | $75 |
| XS 55 Safety Edge Kit | 105531 | $521 |
| CN 60 E Control Unit for Safety Edge | 785200 | $259 |
| IRB-RET Retroreflective Photocell | 2800 | $407 |
| 780 D 115V Control Board (replacement only) | 63000711 | $820 |
| XP 30 Photobeam Photocells Pair (Wall Photocell) | 785105 | $314 |
| XP 30 Stainless Steel Photobeam Photocells Pair | 7851051 | $380 |
| XP 30 Adapter for Wall or Column Mount | 401065 | $28 |
| XP 30 Adapter for Conduit Connection | 401064 | $30 |
| XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) | 787453 | $35 |
| RP1 433 RC Plug-in Receiver 1 Channel (Rolling Code 433MHz) | 787856 | $62 |
| Audio Alarm Enclosure | 5000 | $151 |
