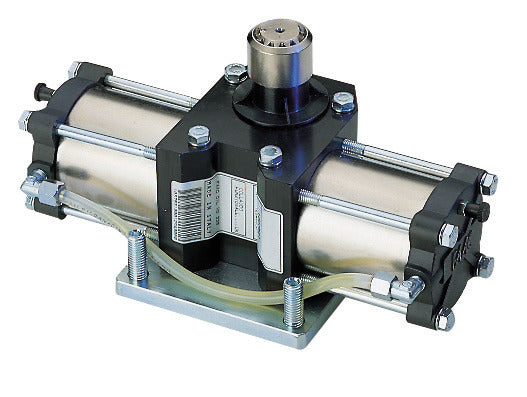

    FAAC 750 In-Ground Hydraulic Swing Gate Operator

    $ 1,337.00
    $ 1,337.00
    Sale Sold out
    Configuration
    Voltage

    FAAC 750 — In-Ground Hydraulic Swing Gate Operator. Part of the FAAC Automated Systems for Swing-leaf Gates - High Voltage range.

    • Maximum leaf width: 13 ft
    • Maximum leaf weight: 1760 lb

    Features

    • Invisible, quiet operator with separate drive unit and pump motor
    • The ideal solution for artistic gates
    • Wide and versatile range from residential to commercial
    • Hydraulic lock of the gate in open and closed positions
    • Self lubricating for long life
    • Compliant with UL325 for Class I,II,III, and IV applications

    Technical Specifications

    750 Pump Motor Assembly

    Input voltage 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
    Power 230 W
    Current 2A (120V) - 1 A (230V)
    Motor Asynchronous single phase
    Pump flow rate 0.75 l/min
    Operating ambient temperature -4°F - 131°F (-20 °C to +55 °C)
    Protection class IP 55
    Thermal protection on motor winding 248 °F (120 °C)
    Use Frequency (cycles per hour) 45
    Weight 16.5 lb (7.5 kg)
    Dimensions (L x D x H) 9.6 x 13.9 x 5.5 in (245x353x141mm)

    750 Drive Unit

    Model 100° opening 180° opening
    Maximum rotation angle 118° 200°
    Angle speed 8.5°/s
    Protection class IP 67
    Effective torque 400 lbf.ft (543 Nm)
    Minimum leaf length 5ft (1.5 m)
    Maximum leaf length 13 ft (4 m) with external lock - 8 ft (2.4m) without external lock
    Maximum leaf weight 1760 lb (800 Kg)

    Models & Part Numbers

    Configuration Voltage Part No. Shipping Wt (approx) List Price
    CBAC Pump Motor Assembly with enclosure 115 V 107725.5 15 lb (6.8 Kg) $1,337
    CBAC Pump Motor Assembly with enclosure 220 V 1077251.5 15 lb (6.8 Kg) $1,337
    CBAC Pump Motor Assembly only 115 V 107725 12 lb (5.4 Kg) $1,312
    CBAC Pump Motor Assembly only 220 V 1077251 12 lb (5.4 Kg) $1,312
    100° Drive Unit N/A 108757 26 lb (11.8 Kg) $1,385
    180° Drive Unit N/A 108758 26 lb (11.8 Kg) $1,595

    Package Contents

    115V system for a single leaf gate (components required)

    Qty Description Part Number
    1 750 CBAC Pump Motor Assembly with enclosure 107725.5
    1 750 100° Drive Unit 108757
    1 455D with 18 x 16 in. metal enclosure 455D115.1
    1 Foundation plate 737607
    1 Flex hose connector kit 390421.5
    1 Flexible hydraulic hose 390422
    1 Pair of XP 30 photobeam photocells 785105
    2 XP 30 adapters for conduit connection 401064

    115V system for a dual leaf gate (components required)

    Qty Description Part Number
    2 750 CBAC Pump Motor Assembly with enclosure 107725.5
    2 750 100° Drive Unit 108757
    1 455D with 18 x 16 in. metal enclosure 455D115.1
    2 Foundation plate 737607
    2 Flex hose connector kit 390421.5
    2 Flexible hydraulic hose 390422
    1 Pair of XP 30 photobeam photocells 785105
    2 XP 30 adapters for conduit connection 401064

    Notes

    • Mounting dimensions, wind factor and gate design will affect performance specification
    • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it.
    • Positive gate stops, which limit gate travel, are required in the opened and closed positions.
    • An electric or magnetic lock is recommended for any gate longer than 8 ft (2.4 m).
    • Photocells required to meet UL 325 monitoring requirement.
    • The 750 Drive Unit includes: the drive unit, installation accessories, metal enclosure with stainless steel cover, extra oil.

    Accessories & Compatible Components

    Description Part No. List Price
    750 Foundation Plate 737607 $85
    750 Flex Hose Connector Kit 390421.5 $104
    750 Flexible Hydraulic Hose - Length 33 ft (10 m) 390422 $179
    750 Flexible Hydraulic Hose - Length 328 ft (100 m) 390439 $1,691
    750 Hydraulic Pump Enclosure 720309 $131
    750 Support Box 490071 $509
    750 U-Channel Style Extension Arm 738704 $160
    750 Extension Arm 2141 $160
    XP 30 Photobeam Photocells Pair (Wall Photocell) 785105 $314
    XP 30 Stainless Steel Photobeam Photocells Pair 7851051 $380
    XP 30 Adapter for Wall or Column Mount 401065 $28
    XP 30 Adapter for Conduit Connection 401064 $30
    Photobeam Mounting Post - Low Column H500 Kit 401070/737100.5 $220
    Photobeam Mounting Post - High Column H1000 Kit 401075/737100.5 $340
    Photobeam Mounting Post - Double Column H1000 Kit 401080/737100.5 $348
    VEK MNSF 10 Pin Plug-in Loop Detector 2681 $245
    XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) 787453 $35
    RP1 433 RC Plug-in Receiver 1 Channel (Rolling Code 433MHz) 787856 $62
