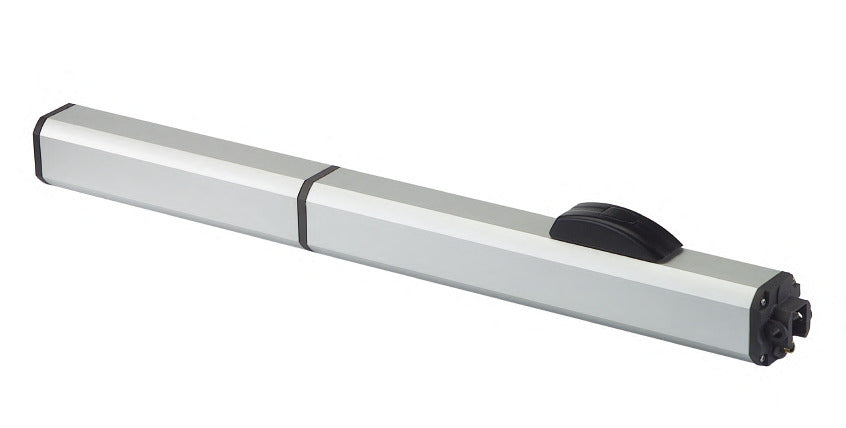

    FAAC 400 Hydraulic Swing Gate Operator

    $ 4,031.00
    $ 4,031.00
    Sale Sold out
    Configuration
    Voltage
    Oil Type

    FAAC 400 — Hydraulic Swing Gate Operator. Part of the FAAC Automated Systems for Swing-leaf Gates - High Voltage range.

    • Maximum leaf width: 12-20 ft
    • Maximum leaf weight: 900-2000 lb

    Features

    • Wide and versatile range from residential to heavy industrial gates
    • Hydraulic lock of the gate in open and/or closed positions
    • Quiet operation
    • Self lubricating for long life
    • Key protected manual release
    • Compliant with UL325 for Class I,II,III, and IV applications

    Technical Specifications

    Model 400 CBC 400 CBAC 400 SB 400 SBS 400 CBACR 400 CBAC EG 400 SB EG
    Input voltage 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
    Power 230 W
    Current 2A (115V) - 1 A (230V)
    Motor Asynchronous single phase
    Thrust capacitor 25uF (115V) - 8uF (230V)
    Operating ambient temperature -4°F - 131°F (-20 °C to +55 °C)
    Thermal protection on motor 248 °F (120 °C)
    Weight 19 lb (8.6 kg) 19 lb (8.6 kg) 19 lb (8.6 kg) 19 lb (8.6 kg) 19 lb (8.6 kg) 22 lb (10 kg) 22 lb (10 kg)
    Protection class IP 55
    Dimensions (L x D x H) 40.5 x 4.4 x 3.3 in (1,031x113x85 mm) 40.5 x 4.4 x 3.3 in (1,031x113x85 mm) 40.5 x 4.4 x 3.3 in (1,031x113x85 mm) 40.5 x 4.4 x 3.3 in (1,031x113x85 mm) 40.5 x 4.4 x 3.3 in (1,031x113x85 mm) 50.6 x 4.4 x 3.3 in (1,285x113x85 mm) 50.6 x 4.4 x 3.3 in (1,285x113x85 mm)
    Hydraulic Locking Closing Opening and Closing None None Opening and Closing Opening and Closing None
    Minimum Leaf Length 6ft (1.8m) 6ft (1.8m) 6ft (1.8m) 7.5ft (2.3m) 6ft (1.8m) 6ft (1.8m) 6ft (1.8m)
    Maximum Leaf Length 16 ft (4.9 m) 16 ft (4.9 m) 18 ft (5.5 m) 20 ft (6.1 m) 12 ft (3.6 m) 18 ft (5.5 m) 20 ft (6.1 m)
    Maximum Leaf Weight 1300 lb (589 Kg) 1300 lb (589 Kg) 1600 lb (726 Kg) 2000 lb (907 Kg) 900 lb (408 Kg) 1500 lb (680 Kg) 1800 lb (816 Kg)
    Thrust force 1390 lbf (620 daN) 1390 lbf (620 daN) 1390 lbf (620 daN) 1740 lbf (775 daN) 1045 lbf (465 daN) 1045 lbf (465 daN) 1045 lbf (465 daN)
    Pump flow rate 1 l/m 1 l/m 1 l/m 0.75 l/m 1.5 l/m 1.5 l/m 1.5 l/m
    90° opening time approx. 18 sec approx. 18 sec approx. 18 sec approx. 24 sec approx. 12 sec approx. 18 sec approx. 18 sec
    Effective rod stroke 10.25 in (260mm) 10.25 in (260mm) 10.25 in (260mm) 10.25 in (260mm) 10.25 in (260mm) 15 in (380mm) 15 in (380mm)
    Use Frequency (cycles per hour) 70 70 70 60 80 50 50

    Models & Part Numbers

    Configuration Voltage Oil Type Part No. Shipping Wt (approx) List Price
    CBAC Standard Basic Single Kit 115V Regular 10420112.5 54 lb (24.5 Kg) $4,031
    CBAC Standard Basic Single Kit 115V Arctic 1042011277.5 54 lb (24.5 Kg) $4,031
    CBAC Standard Basic Single Kit 220V Regular 1042011.5 54 lb (24.5 Kg) $4,031
    CBAC Standard Basic Single Kit 220V Arctic 1042011677.5 54 lb (24.5 Kg) $4,031
    CBACR Rapid Basic Single Kit 115V Regular 10420712.5 54 lb (24.5 Kg) $4,214
    CBACR Rapid Basic Single Kit 115V Arctic 1042071277.5 54 lb (24.5 Kg) $4,214
    CBACR Rapid Basic Single Kit 220V Regular 1042071.5 54 lb (24.5 Kg) $4,214
    CBACR Rapid Basic Single Kit 220V Arctic 104207177.5 54 lb (24.5 Kg) $4,214
    CBAC EG (long) Basic Single Kit 115V Regular 10420212.5 54 lb (24.5 Kg) $4,320
    CBAC EG (long) Basic Single Kit 115V Arctic 1042021277.5 54 lb (24.5 Kg) $4,320
    CBAC EG (long) Basic Single Kit 220V Regular 1042021.5 54 lb (24.5 Kg) $4,320
    CBAC EG (long) Basic Single Kit 220V Arctic 104202177.5 54 lb (24.5 Kg) $4,320
    CBAC Standard Operator only 115V Regular 104201125 29 lb (13.2 Kg) $2,385
    CBAC Standard Operator only 115V Arctic 1042011577 29 lb (13.2 Kg) $2,385
    CBAC Standard Operator only 220V Regular 1042011 29 lb (13.2 Kg) $2,385
    CBAC Standard Operator only 220V Arctic 1042011677 29 lb (13.2 Kg) $2,385
    CBACR Rapid Operator only 115V Regular 10420712 29 lb (13.2 Kg) $2,528
    CBACR Rapid Operator only 115V Arctic 1042071277 29 lb (13.2 Kg) $2,528
    CBACR Rapid Operator only 220V Regular 1042071 29 lb (13.2 Kg) $2,528
    CBACR Rapid Operator only 220V Arctic 104207177 29 lb (13.2 Kg) $2,528
    CBAC EG (long) Operator only 115V Regular 104202125 29 lb (13.2 Kg) $2,705
    CBAC EG (long) Operator only 115V Arctic 1042021277 29 lb (13.2 Kg) $2,705
    CBAC EG (long) Operator only 220V Regular 1042021 29 lb (13.2 Kg) $2,705
    CBAC EG (long) Operator only 220V Arctic 104202177 29 lb (13.2 Kg) $2,705

    Package Contents

    Basic Single Kit 115V

    Qty Description Part Number
    1 Operator 400 CBAC Various
    1 455D with 18 x 16 in. metal enclosure 455D115.1
    1 Receiver 433 RC Plug In 787856
    2 4-channel transmitter XT4 433 RC 787453
    1 Pair of XP 30 photobeam photocells 785105
    2 XP 30 adapters for conduit connection 401064

    Basic Single Kit 220V

    Qty Description Part Number
    1 Operator 400 CBAC Various
    1 455D with 18 x 16 in. metal enclosure 455D220.1
    1 Receiver 433 RC Plug In 787856
    2 4-channel transmitter XT4 433 RC 787453
    1 Pair of XP 30 photobeam photocells 785105
    2 XP 30 adapters for conduit connection 401064

    Notes

    • Mounting dimensions, wind factor and gate design will affect performance specification
    • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it.
    • Positive gate stops, which limit gate travel, are required in the opened and closed positions.
    • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
    • Other operator models not listed can be special ordered. Call 1-800-221-8278 for more information.
    • To make the kit a bi-parting system add an Operator only.

    Accessories & Compatible Components

    Description Part No. List Price
    Positive Stop 400 Std. 490109 $279
    Positive Stop 400 EG 490043 $279
    XP 30 Photobeam Photocells Pair (Wall Photocell) 785105 $314
    XP 30 Stainless Steel Photobeam Photocells Pair 7851051 $380
    XP 30 Adapter for Wall or Column Mount 401065 $28
    XP 30 Adapter for Conduit Connection 401064 $30
    Photobeam Mounting Post - Low Column H500 Kit 401070/737100.5 $220
    Photobeam Mounting Post - High Column H1000 Kit 401075/737100.5 $340
    Photobeam Mounting Post - Double Column H1000 Kit 401080/737100.5 $348
    VEK MNSF 10 Pin Plug-in Loop Detector 2681 $245
    XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) 787453 $35
    RP1 433 RC Plug-in Receiver 1 Channel (Rolling Code 433MHz) 787856 $62
