EM01 Ethernet module for MGC Controller

EM01 Ethernet module for MGC Controller

$ 332.86
Skip to product information
EM01 Ethernet module for MGC Controller

Magnetic Access

EM01 Ethernet module for MGC Controller

SKU EM01
$ 332.86

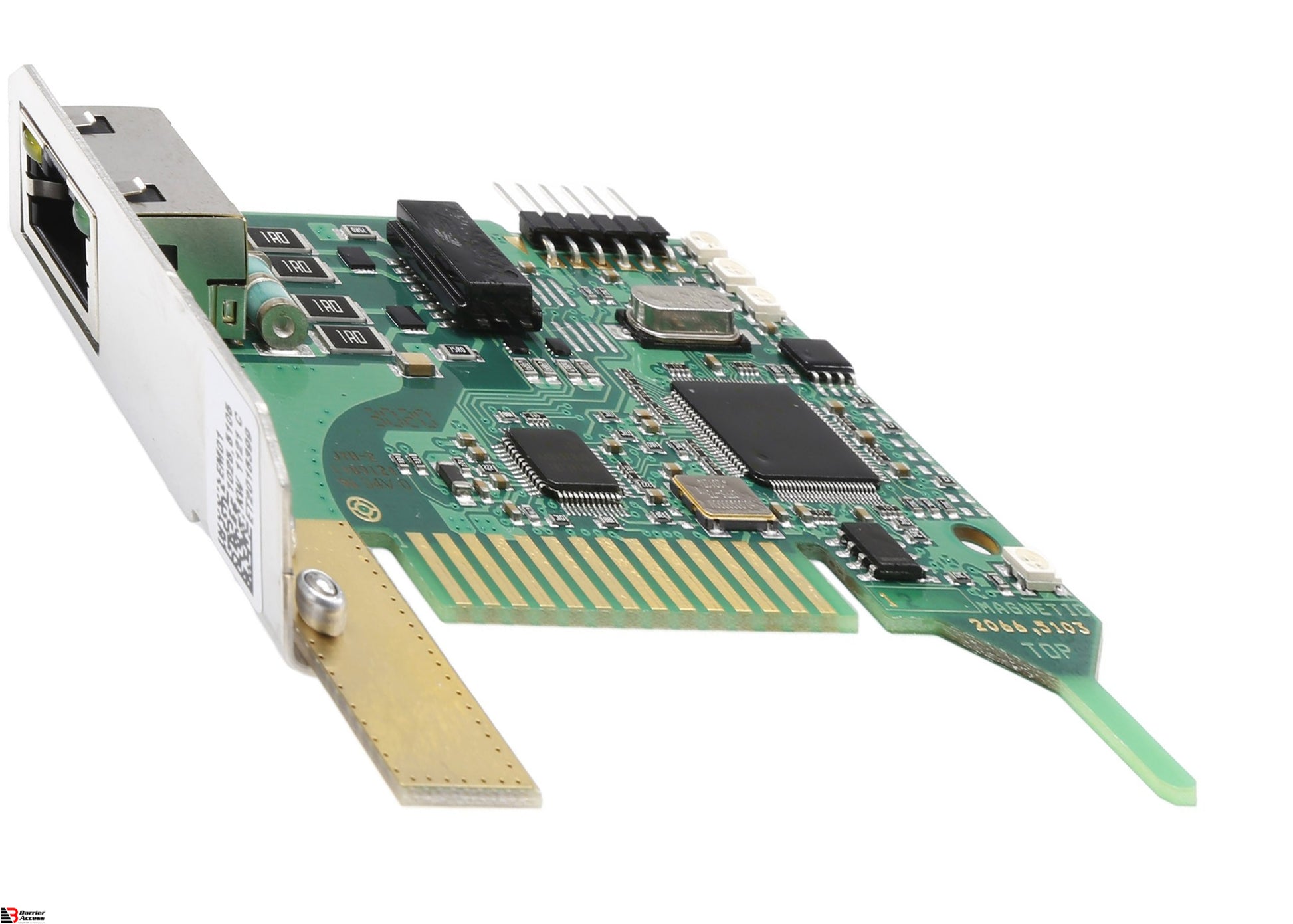

The Ethernet module enables communication via TCP/IP and is plugged directly into the MGC Pro controller. An integrated web server allows an easy configuration of the module and provides additional testing routines. By Magnetic AutoControl.
Technical Data:
Current consumption: 50 mA
Max cable length: 30 m
Cable type: Cat-5, Twisted-Pair
Connector type: RJ-45
Default IP-Address: 192.168.1.2
Supported protocols: HTTP (Webserver), ICMP (Ping), TCP/IP (ModBus), DHCP Client, NetBios

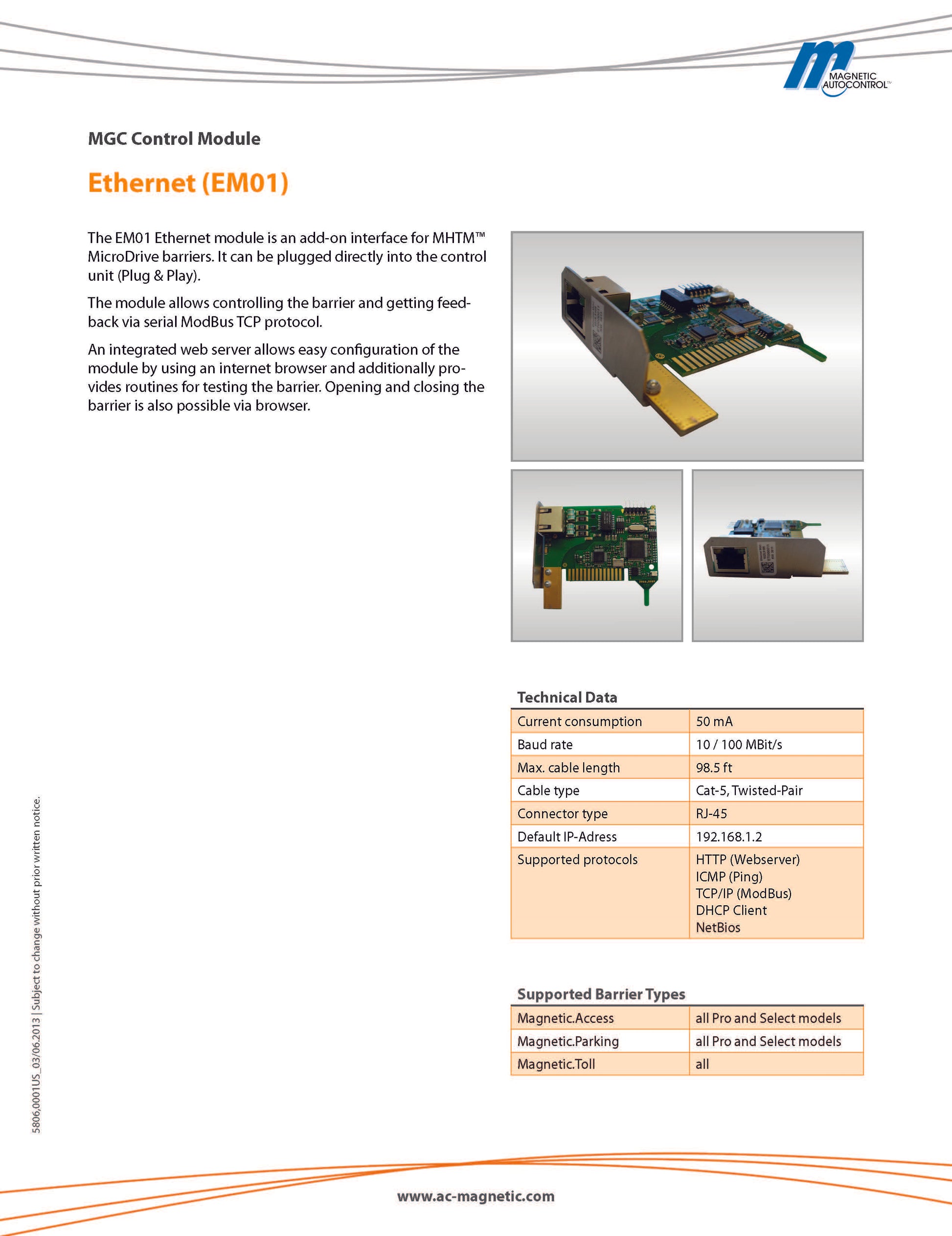

Download pdf
Talk to a Specialist
  • Ships in 1–2 daysMost products, from order receipt
  • Gates & arms varyMay need extra manufacturing lead time
  • Magnetic AccessAuthorized distributor
  • Real tech support321-250-2500

The ethernet module is plugged directly into the MGC Pro controller and enables communi-cation via TCP/IP. An integrated web server allows an easy configuration of the module and provides additional testing routines.
