FEIG

VEK-MNH2

Regular price $ 149.00
Regular price Sale price $ 149.00
Sale Sold out

EK MNH2-R24-C dual channel vehicle loop detector for vehicle detection with two relay outputs.

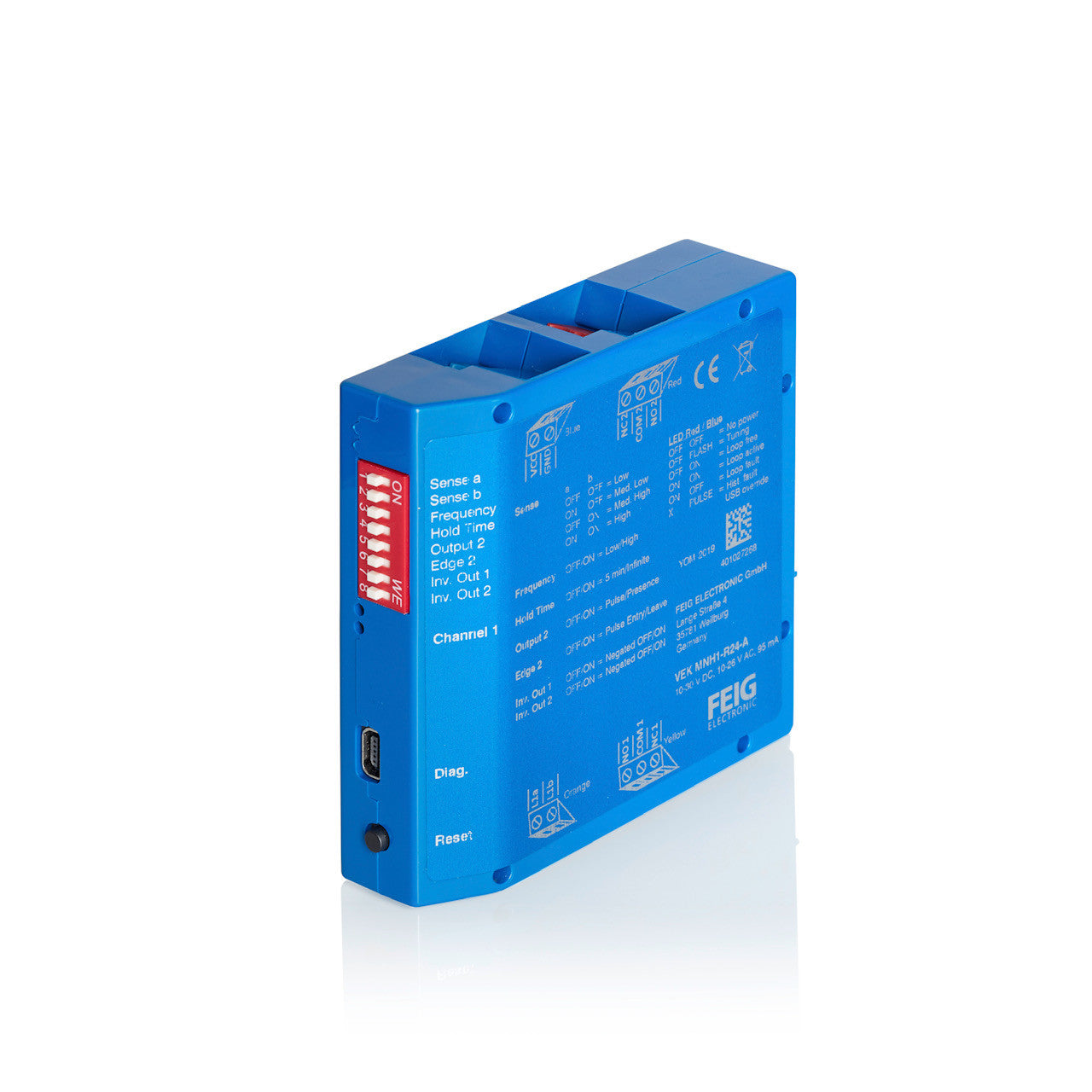

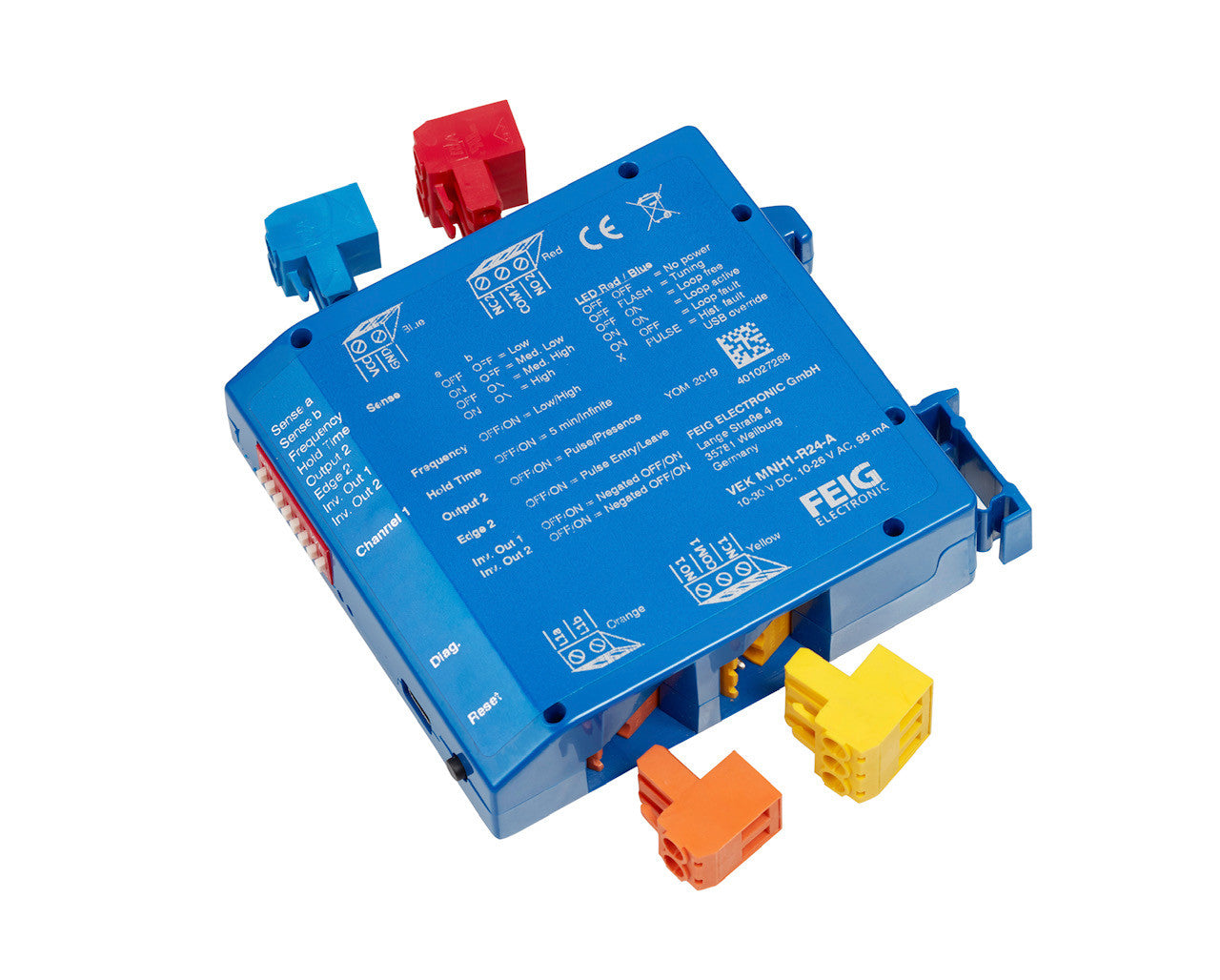

The VEK MNH2 is a C-Rail mountable vehicle loop detector.

The detectors come in a small form factor that fits in all spaces and mounts on a standard 35 Din Rail.

Variations
  • VEK MNH2 Induction vehicle loop detector (2-channel)
Special Characteristics:
  • Plastic housing with compact size to be mounted directly on DIN – or C-rail
  • Direct cabling, no plug socket
  • Microprocessor controlled
  • Isolation transformer between loop and detector electronics
  • Automatic Calibration when switching on or when changing the adjustment of holding time
  • Adjustment of unlimited holding time possible
  • Indication with LED`s
  • All adjustments with DIP – switch on front panel
  • Adjustments of relay functionality
  • 10-30 VDC or 10-26 V AC
Features
  • Isolation transformer between loop and detector electronics
  • Automatic calibration when switching on or changing the adjustment of holding time
  • Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
  • Adjustment of unlimited holding time possible
  • All adjustments with DIP-switch on front panel
  • Permanent or pulse output adjustable
  • hardware platform for higher detection speed and flexibility



Warranty

1 Year from time at shipment. Limited Warranty. Please ask for our warranty Statement

Other

Same model as VEK MNH2

Replaces

VEK-M2H and MID2E-800
