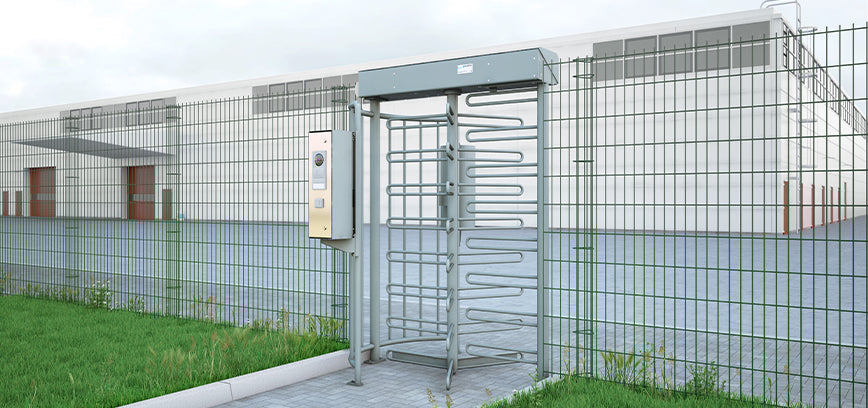

MPT33C-C350G Full Height Electro-Mechanical Turnstile

Magnetic MPT turnstiles are the ideal solution for controlling access indoors or outdoors where many people will enter or leave an area expediently. MPT turnstiles can be precisely adapted to your intended purpose thanks to the drive variations offered.

he MPT 33 has an electromechanical interlock unit and the rotary movement is initiated by users themselves – a popular variant at leisure parks and stadiums. Both drive versions can be controlled by means of all conventional access control systems and can be operated bi-directionally as an option. MPT turnstiles can also be individually adapted to your requirements in other ways: with a variety of material options, inter-lock variants, additional attachments and expansions for bicycles, wheelchairs and material carts.

MPT turnstiles are the ideal solution when it is necessary to secure outdoor areas with high rates of pedestrian  traffic. Numerous options are available for access control.

Number of wings (angle) 3 (120°

Voltage 110 – 240 VAC, 50/60 Hz

Duty cycle 100%

Enclosure rating IP43

Dimensions (L x W x H) 59.4 x 59.1 x 88.0 in

Weight approx. 550 lbs

Temperature range -13 to +131°F

Material Galvanized Steel

Reaction to power failure Free access or auto-locking (secure) on power failure
