Magnetic Access

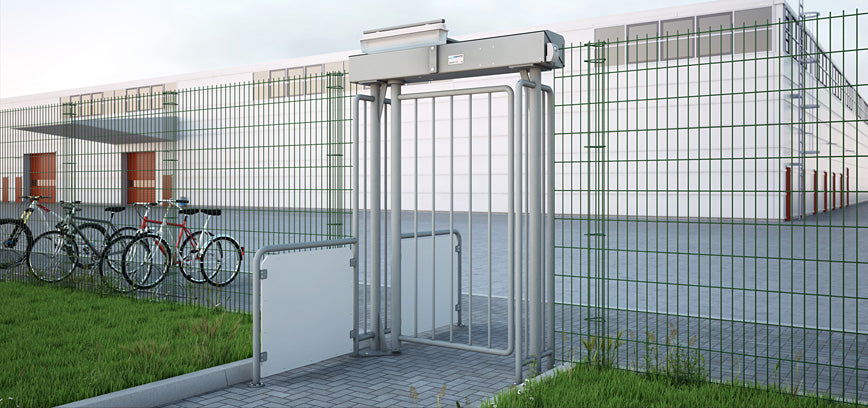

MPG-162C-C100 Full Height Motorized Modular Gate

Regular price $ 13,597.35
Regular price $ 13,946.00 Sale price $ 13,597.35
Sale Sold out

Wheelchair-Accessible Swing Gate

Installation in combination with turnstile system

Drive technology MHTM™

Voltage 110 – 240 VAC, 50/60 Hz

Power consumption approx. 50 W

Duty cycle 100%

Opening/closing times approx. 3 s

Passage width 42.8 in

Enclosure rating  IP43

Dimensions (L x W x H) 57.1 x 19.7 x 88 in

Weight approx. 485 lbs

Temperature range 13 to +122° F

Fully-motorized operation
Controlled access for cyclists and wheelchair users Sensitive impact detection for maximum safety Induction loop sensor for detection of bicycles and wheelchairs (optional) Low electricity consumption thanks to maintenance-free MHTM™ drive Meets European safety standards, e.g. EN 13241

For wheelchairs, bicycles and goods deliveries
MPG motorized swing gates are the optimum barrier solution when a large passage opening is required at indoor or outdoor access points. It can be free-standing or used in combination with a Magnetic MPT turnstile. The swing gate has an opening angle of 90° in both directions and can be controlled by most access control systems. As an option, the swing gate can be enhanced with a single- or double-sided induction loop that reliably detects the presence of bicycles and wheelchairs. The induction loops are cleverly incorporated into the vertical side rails.

The swing gate is energy-efficient, maintenance-free and quiet thanks to its MHTM™ drive technology. Low impact force and sensitive contact detection ensures user safety and compliance with strict industry standards. With a variety of material options, interlocks and supplementary attachments, MPG swing gates can be individually outfitted for the desired  purpose.

For wheelchairs, bicycles and baggage MPG swing gates are the optimum solution when large opening widths are necessary. A wide variety of options are available for access control.

Innovative drive technology
The MHTM™ drive unit is maintenance- free, energy-efficient, and has an exceptional soft-start action.

Maximum safety
Low impact force and high sensitivity contact detection offer optimum protection for persons, bicycles, carts and wheelchairs.

Easy access to components
All the components necessary for operation are contained in the main header beam, simplifying assembly, setup and maintenance.

Motorized door perfect addition to add to your Full Height turnstile!!


Please call or email for a freight quote. +1 321-250-2500 x 101 or
