    FAAC

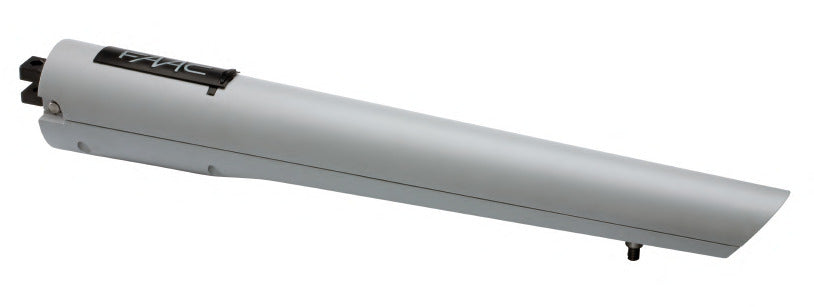

    FAAC S418 Electromechanical Swing Gate Operator

    $ 2,398.00
    $ 2,398.00
    Sale Sold out
    Configuration

    FAAC S418 — Electromechanical Swing Gate Operator. Part of the FAAC Automated Systems for Swing-leaf Gates - Low Voltage range.

    • Maximum leaf width: 10-16 ft
    • Maximum leaf weight: 720 lb

    Features

    • Sleek design
    • Built-in opening and closing mechanical stops
    • Effective stroke of 13.8 in. (350mm)
    • New "multi-position" bracket for non-welded installation
    • Maximum safety thanks to the E024U control board reverse on contact feature
    • Built in battery backup to ensure operation in case of power outage
    • Compliant with UL325 for Class I,II,III, and IV applications

    Technical Specifications

    Input Voltage 24 Vdc
    Max Power 35 W
    Maximum thrust 404 lbf (180 daN)
    Rod stroke 13.8 in (350 mm)
    Rod stroke without mechanical stops 15.3 in (390 mm)
    Minimum time to open 90° 10 sec
    Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
    Max leaf opening angle 110°
    Use frequency continuous
    Operator Weight 13.2 lb (6 kg)
    Dimensions (L x D x H) 32.5 x 4 x 4.9 in (825x104x125mm)
    Protection class IP 54

    Gate Length / Max Gate Weight

    10 ft (3.0 m) up to 720 lb (326 kg)
    12 ft (3.7 m) up to 500 lb (227 kg)
    14 ft (4.3 m) up to 370 lb (168 kg)
    16 ft (4.9 m) up to 280 lb (127 kg)

    Models & Part Numbers

    Configuration Part No. Shipping Wt (approx) List Price
    Single Kit 104301.5 48 lb (21.8 Kg) $2,398
    Secondary Kit 10430115.5 38 lb (16.8 Kg) $1,043
    Operator only 10430115 18 lb (8.2 Kg) $808
    Basic Single Kit reflective photobeams 104012.5 48 lb (21.8 Kg) $2,501

    Package Contents

    Single Kit

    Qty Description Part Number
    1 Operator S418 10430115
    1 E024U Enclosure Kit (includes batteries) 5550.1
    1 Receiver 433 RC Plug In 787856
    2 4-channel transmitter XT4 433 RC 787453
    1 Pair of XP 30 photobeam photocells 785105
    2 XP 30 adapters for conduit connection 401064

    Secondary Kit

    Qty Description Part Number
    1 Operator S418 10430115
    1 Junction Box for electrical connections 3361.1
    40* Cable AWG 12 - 2 conductors (operator) - 1 ft 2197

    Notes

    • Mounting dimensions, wind factor and gate design will affect performance specification
    • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it.
    • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
    • For a bi-parting application add a Secondary Kit.
    • (*) The AWG 12 cable can be used for connections of up to 50' of length between the operator and the control board.

    Accessories & Compatible Components

    Description Part No. List Price
    Loop Detector Interface 2670.1 $158
    VEK MNSF 10 Pin Plug-in Loop Detector 2681 $245
    XIB Interface for Shadow Loop 790062 $42
    XP 30 Photobeam Photocells Pair (Wall Photocell) 785105 $314
    XP 30 Stainless Steel Photobeam Photocells Pair 7851051 $380
    XP 30 Adapter for Wall or Column Mount 401065 $28
    XP 30 Adapter for Conduit Connection 401064 $30
    Photobeam Mounting Post - Low Column H500 Kit 401070/737100.5 $220
    Photobeam Mounting Post - High Column H1000 Kit 401075/737100.5 $340
    Photobeam Mounting Post - Double Column H1000 Kit 401080/737100.5 $348
    XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) 787453 $35
    RP1 433 RC Plug-in Receiver 1 Channel (Rolling Code 433MHz) 787856 $62
    Tuned Antenna Kit - Antenna RP / XR2 (433 MHz) 412003 $113
    IRB-RET Retroreflective Photocell 2800 $407
