FAAC

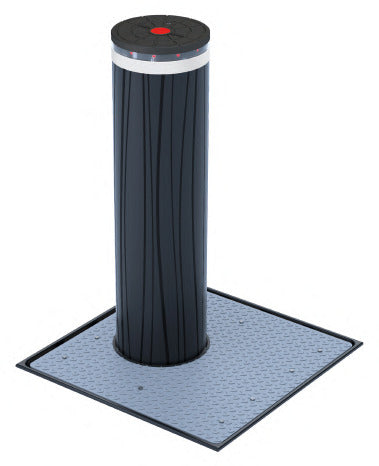

FAAC JS 48 HA Retractable Security Bollard (30 mph certified)
Regular price
$ 32,324.00
Regular price
Sale price
$ 32,324.00
Unit price
per
Couldn't load pickup availability
FAAC JS 48 HA — Retractable Security Bollard (30 mph certified). Part of the FAAC Traffic Bollards range.
- Type: Hydraulic automatic
- Height: 39.4 in (1000 mm)
Features
- Maintenance can be carried out without removing the bollard. No lifting equipment required
- Interchangeable protective cover so that the bollard is always just like new
- Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards. Able to withstand impact with a truck driven at 30 mph (48 km/h). P1 penetration rating, still operational after impact
Technical Specifications
| Model | JS 48 HA | JS 48 HA Stainless Steel | JS 48 HA EFO | JS 48 HA EFO Stainless Steel |
|---|---|---|---|---|
| Type of operator | Hydraulic | |||
| Cylinder height from ground | 39.4 in (1,000 mm) | |||
| Cylinder diameter | 10.8 in (275 mm) | |||
| Cylinder treatment | Cataphoresis | |||
| Protective cover type | mDure® | AISI 316 stainless steel + mDure® | mDure® | AISI 316 stainless steel + mDure® |
| Reflective strip height | 2.16 in (55 mm) | |||
| Standard reflecting strip color | White | |||
| Head material type | Aluminum | |||
| Head treatment type | Rilsan® anticorrosive resin | |||
| Rising time | Approx 6 s | |||
| Quick rise device | No | No | Yes | Yes |
| Emergency rising time | - | - | Approx 1.5 s | Approx 1.5 s |
| Release device | Yes | |||
| Descent time | Approx 2 s | |||
| Power supply voltage | 207-243V ~ 50/60 Hz | |||
| Max. power | 3,500 W | |||
| Type of use | Perimeter Security | |||
| Break in resistance | 673,000 J | |||
| Operating ambient temperature | 5°F - 149°F (-15 °C / +80 °C) | |||
| Operating ambient temperature with heater | -40°F - 149°F (-40°C / +80°C) | |||
| Hydraulic pump unit protection class | IP67 | |||
| Load class (EN 124) | C250 (25 metric ton) | |||
| Traffic bollard weight | 1,170 lb (530 kg) | 1,235 lb (560 kg) | 1,170 lb (530 kg) | 1,235 lb (560 kg) |
| Pit weight | 441 lb (200 kg) | |||
Models & Part Numbers
| Version | Finish | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|---|
| HA | Painted Steel / mDure® | 117001 | $32,324 | |
| HA EFO (Emergency Fast Operation) | Painted Steel / mDure® | 117051 | $39,074 | |
| HA | Stainless Steel AISI 316L / mDure® | 117201 | $35,213 | |
| HA EFO (Emergency Fast Operation) | Stainless Steel AISI 316L / mDure® | 117251 | $42,082 |
Package Contents
Painted steel version comes with
- Steel cylinder with cataphoretic coating
- mDure® protective sleeve, anthracite, with exclusive FAAC aesthetic finish
- Flashing LED lights ring
- Audible buzzer (active during movement)
- Reflector strip
- Hydraulic lock in raised position (in case of a power failure)
- Release key for manual emergency lowering
- Pressure accumulator for fast rise (EFO version only)
Stainless steel version comes with
- Steel cylinder with cataphoretic coating
- mDure® protective sleeve with satin-finish stainless steel
- Flashing LED lights ring
- Audible buzzer (active during movement)
- Reflector strip
- Hydraulic lock in raised position (in case of a power failure)
- Release key for manual emergency lowering
- Pressure accumulator for fast rise (EFO version only)
Notes
- Installation pit (117901) is required for install.
- JE275 control unit includes enclosure.
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| JE275 Bollard Control Unit (includes enclosure) | 117300 | $833 |
| Pit JS HA (required for install) | 117901 | $7,868 |
| Pit Cover JS | 117903 | $1,474 |
| Emergency Manual Pump JS HA | 117905 | $1,847 |
| Pit Heater for J200HA / JS HA | 117906 | $983 |
