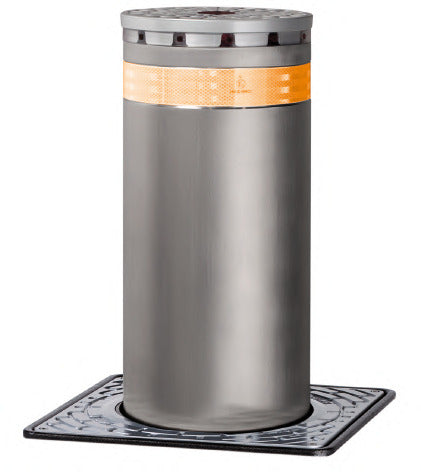

FAAC J275 F — Fixed Traffic Bollard. Part of the FAAC Traffic Bollards range.
- Type: Fixed
- Height: 23.6 in (600 mm) / 31.5 in (800 mm)
Features
- Power supply and wiring not required
- Simple installation and limited digging operations
- Aesthetically consistent with other retractable bollards in mixed installation
- Possibility to remove the bollard to temporarily open the pedestrian area to traffic
Technical Specifications
| Model | J275 F 600 | J275 F 800 |
|---|---|---|
| Cylinder height | 23.6 in (600 mm) | 31.5 in (800 mm) |
| Cylinder diameter | 10.8 in (275 mm) | |
| Cylinder material, standard version | Fe 360 steel 0.16 in (4mm) thickness | |
| Standard cylinder surface treatment | Cataphoresis and polyester powder painted RAL 7021 metallic dark grey | |
| Cylinder material, stainless steel version | AISI 316 satin finished 0.12 in (3mm) thickness | |
| Cylinder head | Aluminum RAL 9006 | |
| Standard reflecting strip | Height 2.2 in (55 mm) | |
| Crash resistance | 35 KJoules/Painted steel - 59 KJoules/stainless steel | |
| Total weight Bollard | 75 lb (34 kg) | 84 lb (38 kg) |
| Foundation size (LxWxH) | 30x30x6 in (750x750x150 mm) | |
Models & Part Numbers
| Finish | Height | Part No. | Shipping Wt (approx) | List Price |
|---|---|---|---|---|
| Painted Steel (RAL 7021) | 600 mm (23.6 in) | 116020 | 80 lb (36 Kg) | $2,127 |
| Painted Steel (RAL 7021) | 800 mm (31.5 in) | 116021 | 89 lb (40 Kg) | $2,251 |
| Satin Finish Stainless Steel AISI 316 | 600 mm (23.6 in) | 116040 | 80 lb (36 Kg) | $3,252 |
| Satin Finish Stainless Steel AISI 316 | 800 mm (31.5 in) | 116041 | 89 lb (40 Kg) | $3,563 |
Package Contents
Painted steel version features
- Cylinder thickness 0.16 in (4 mm) cataphoresis treatment and painted
- Powder paint dark grey metallised RAL 7021
- LED lights
Stainless steel version features
- Cylinder in stainless steel thickness 0.12 in (3 mm) satin-finished
- Flashing lights ring with central LED
Notes
- The power supply unit (24V DC) and the cable for the flashing light are not supplied.
Accessories & Compatible Components
| Description | Part No. | List Price |
|---|---|---|
| JPF275 Fixed Bollard Mounting Frame | 116120 | $438 |
| JC275 Pit Cover | 116201 | $404 |
