    FAAC

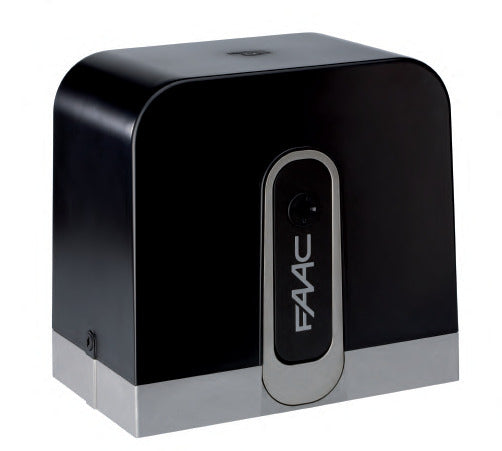

    FAAC C720 / C721 Low Voltage Slide Gate Operator

    $ 1,269.00
    $ 1,269.00
    Sale Sold out
    Model

    FAAC C720 - C721 — FAAC C720 / C721 Low Voltage Slide Gate Operator. Part of the FAAC Automated Systems for Slide Gates range.

    • Max weight C720: 900 lb
    • Max weight C721: 1800 lb

    Features

    • Residential use (C720), commercial use (C721)
    • New mobile-axis reduction gear
    • Exceptionally high mechanical efficiency >80%
    • Control unit with anti-crushing device and electronic encoder with reverse function upon detection of obstacle
    • Magnetic limit switches
    • Bi-parting function for controlling two opposing leafs

    Technical Specifications

    Model C720 C721
    Input voltage 115 VAC (+10% -6%) 230 VAC (+6% -10%)
    Motor power supply 24 Vdc
    Power 220 W 290 W
    Current 7A 12 A
    Electric motor speed 3200 r.p.m. 3600 r.p.m.
    Thrust on gate 72 lbf (320 N) 119 lbf (530 N)
    Leaf max weight 900 lb (408 Kg) 1800 lb (816 Kg)
    Limit-switches Magnetic
    Pinion Z28 module 4
    Gate speed 0.98 ft/second (0.3 m/second)
    Use frequency continuous
    Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
    Operator weight 17.6 lb (8 kg)
    Dimensions (L x D x H) 11.8 x 7 x 11 in (300x180x280mm)
    Protection class IP 44

    Models & Part Numbers

    Model Part No. Shipping Wt (approx) List Price
    C720 109322 22 lb (10 Kg) $1,269
    C721 109321 22 lb (10 Kg) $2,025

    Package Contents

    Package includes

    • Electro-mechanical operator with control unit E 721
    • Pinion for rack
    • Release key
    • Foundation plate
    • Magnetic limit switches

    Notes

    • Rack is not included.

    Accessories & Compatible Components

    Description Part No. List Price
    Galvanised Rack plus Fittings - 4 sections of 3.3 ft (1 m) each 490122.1 $301
    Nylon Rack with Steel Reinforcement plus Fittings - 4 sections of 3.3 ft (1 m) each 4901204.1 $227
    Battery Kit XBAT 24 390923 $309
    Receiver XF 433 MHz 787831 $70
    E721 Control Board (replacement only) 63002485 $627
    XP 30 Photobeam Photocells Pair (Wall Photocell) 785105 $314
    XP 30 Stainless Steel Photobeam Photocells Pair 7851051 $380
    XP 30 Adapter for Wall or Column Mount 401065 $28
    XP 30 Adapter for Conduit Connection 401064 $30
    XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) 787453 $35
