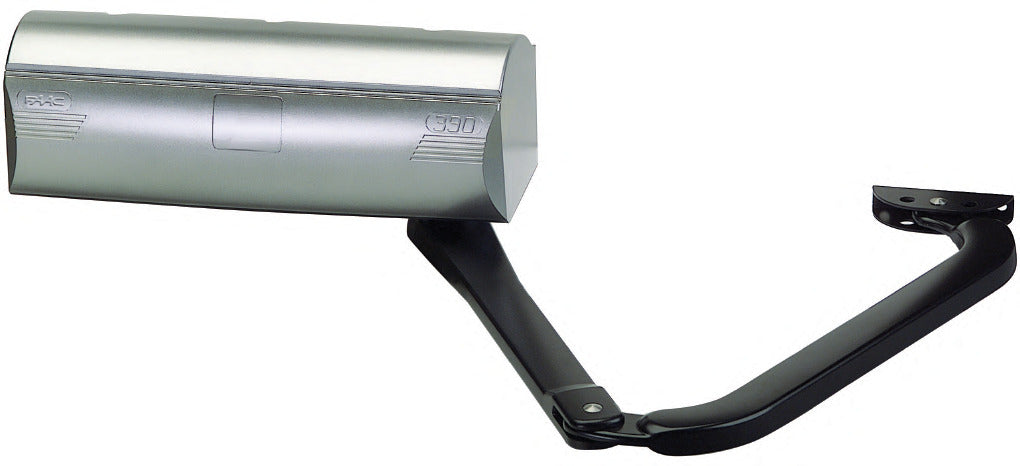

    FAAC 390 Electromechanical Swing Gate Operator with Articulated Arm

    $ 3,074.00
    $ 3,074.00
    Sale Sold out
    Configuration

    FAAC 390 — Electromechanical Swing Gate Operator with Articulated Arm. Part of the FAAC Automated Systems for Swing-leaf Gates - Low Voltage range.

    • Maximum leaf width: 14 ft
    • Maximum leaf weight: 600 lb

    Features

    • Non reversing operator, does not require external locks
    • Easy to install, no modifications to the gates are necessary
    • Ideal for gates mounted on large columns
    • Adjustable limit switches (optional)
    • Maximum safety thanks to the E024U control board reverse on contact feature
    • Built in battery backup to ensure operation in case of power outage
    • Compliant with UL325 for Class I,II,III, and IV applications

    Technical Specifications

    Input Voltage 24 Vdc
    Power 40 W
    Motor rotation speed 960 r.p.m.
    Reduction ratio 1:700
    Angle speed 8°/s
    Leaf max. width 14 ft (4.3 m)
    Leaf max. weight 600 lb (272 Kg)
    Max. torque 184 lbf.ft (250 Nm)
    Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
    Use frequency continuous
    Operator Weight 25 lb (11.5 kg)
    Dimensions (L x D x H) 16 x 5 x 5 in (410x130x130 mm)
    Protection class IP 44

    Models & Part Numbers

    Configuration Part No. Shipping Wt (approx) List Price
    Single Kit 104572.5 58 lb (26.3 Kg) $3,074
    Secondary Kit 1045791.5 48 lb (21.3 Kg) $1,666
    Operator plus two limit switches kit 104579.5 24 lb (10.9 Kg) $1,318
    Operator only 104579 24 lb (10.9 Kg) $1,206

    Package Contents

    Single Kit

    Qty Description Part Number
    1 Operator 390 104579
    2 Limit Switch 390682
    1 E024U Enclosure Kit (includes batteries) 5550.1
    1 Receiver 433 RC Plug In 787856
    2 4-channel transmitter XT4 433 RC 787453
    1 Pair of XP 30 photobeam photocells 785105
    2 XP 30 adapters for conduit connection 401064

    Secondary Kit

    Qty Description Part Number
    1 Operator 390 with limit switches 104579.5
    1 Junction Box for electrical connections 3365.1
    40* Cable AWG 12 - 2 conductors cable (operator) - 1 ft 2197
    40 Cable AWG 18 - 3 conductors cable (limit switches) - 1 ft 2192

    Notes

    • Mounting dimensions, wind factor and gate design will affect performance specification
    • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it.
    • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
    • For a bi-parting application add a Secondary Kit.
    • (*) The AWG 12 cable can be used for connections of up to 50' of length between the operator and the control board.

    Accessories & Compatible Components

    Description Part No. List Price
    Standard Articulated Arm for 390 738705 $380
    Single Limit Switch Kit for 390 (opening or closing) 390682 $46
    Loop Detector Interface 2670.1 $158
    VEK MNSF 10 Pin Plug-in Loop Detector 2681 $245
    XIB Interface for Shadow Loop 790062 $42
    XP 30 Photobeam Photocells Pair (Wall Photocell) 785105 $314
    XP 30 Stainless Steel Photobeam Photocells Pair 7851051 $380
    XP 30 Adapter for Wall or Column Mount 401065 $28
    XP 30 Adapter for Conduit Connection 401064 $30
    Photobeam Mounting Post - Low Column H500 Kit 401070/737100.5 $220
    Photobeam Mounting Post - High Column H1000 Kit 401075/737100.5 $340
    Photobeam Mounting Post - Double Column H1000 Kit 401080/737100.5 $348
    XT4 433 RC Transmitter 4 Channels (Rolling Code 433MHz) 787453 $35
    RP1 433 RC Plug-in Receiver 1 Channel (Rolling Code 433MHz) 787856 $62
    Tuned Antenna Kit - Antenna RP / XR2 (433 MHz) 412003 $113
    IRB-RET Retroreflective Photocell 2800 $407
