How to Choose a Vehicle Detection Loop for Your Gate or Barrier Installation

A gate or barrier operator is only as safe as its ability to know a vehicle is in the path before it closes. Photo eyes can be blocked by fog, dirt, or a poorly aimed reflector. An induction loop, buried in the pavement itself, can't be. Choosing the wrong loop — the wrong type, the wrong size, or the wrong wire — is one of the most common causes of nuisance service calls and, in the worst case, a gate that closes on a vehicle it should have detected. This guide walks through how to choose a loop correctly.

Step 1: Decide Between a Saw-Cut Loop and a Direct Burial Loop

The first decision is driven entirely by what's already in the ground. The two loop types serve different installation conditions, and picking the wrong one makes the job harder without improving performance.

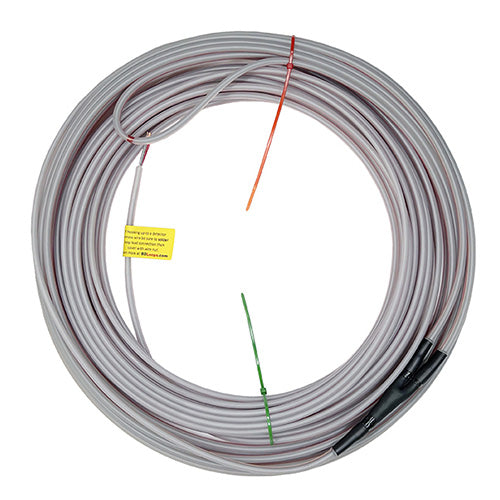

Saw-Cut Loops: For Existing Pavement

Saw-cut loops are built for retrofits — a slot is cut into existing concrete or asphalt, the preformed loop and its lead-in are pressed into the groove, and the slot is sealed with loop sealant. Quality saw-cut loops are designed to fit a 3/16-inch groove with the backer material built into the wire jacket, so there's no separate backer rod to install, and the loop fills enough of the groove that it takes meaningfully less sealant than a wider 1/4-inch cut. If this is the only option because the pavement is already down, it's a proven approach — just budget for the visible saw-cut lines in the finished surface.

Direct Burial Loops: For New Pours, Gravel, and Dirt

Where the pavement doesn't exist yet — a new concrete pour, fresh asphalt, a gravel or dirt drive, or installation under pavers — a direct burial loop goes down before the surface does. Direct burial loops are typically built with solid copper wire and a reinforced yoke, which keeps the loop rigid enough that it won't sag below the rebar during a concrete pour and gives it better resistance to being crushed during construction than a saw-cut loop offers. Given the choice, installing a direct burial loop during new construction is generally preferable to saw-cutting later — it avoids cutting a visible groove into a finished surface and holds up longer over time.

Step 2: Determine How Many Loops Your Gate Type Needs

Loop count isn't a fixed number — it depends on how the gate moves. Getting this wrong is the single most common design mistake, and it's the difference between a gate that reliably won't close on a vehicle and one that occasionally will.

Slide Gates: Two Loops Minimum

A sliding gate needs two reverse loops, one positioned on each side of the gate opening, to cover the full gate path — the gate can close on a vehicle from either direction otherwise. A third loop, positioned further out as an exit loop, is optional but improves the experience by triggering the gate to open before the vehicle arrives at it.

Swing Gates: Three Loops Minimum

A single swing gate needs three loops: two reverse loops, one on each side, plus a shadow loop positioned under the gate's actual swing path. The shadow loop exists specifically to detect a vehicle in the arc the gate physically travels through — without it, a vehicle stopped under the swinging gate isn't necessarily covered by the reverse loops alone. As with slide gates, an exit loop is optional.

Double Swing Gates: Three Loops Minimum, Different Shadow-Loop Geometry

Double swing gates also need a minimum of three loops — two reverse loops and a shadow loop — but because two gate leaves are swinging through the same opening, the shadow loop's dimensions are calculated differently than on a single swing gate. Getting this geometry right requires knowing the actual driveway width and which direction each leaf swings, which is exactly the kind of layout question worth confirming against a loop manufacturer's sizing chart or calculator rather than guessing.

Step 3: Size the Loop to Your Driveway Width and Vehicle Type

Once loop count is settled, each loop needs to be sized to the opening and the vehicles using it. For reverse loops, the long leg of the loop is generally figured by taking the driveway width and subtracting about four feet to keep the loop clear of the curbs on each side. The short leg is chosen based on what's driving through: roughly four feet is standard for residential vehicles, but sites expecting taller commercial vehicles — delivery trucks, for instance — need a six-foot short leg, because a loop's detection height scales with the short leg dimension, and a taller vehicle with more ground clearance needs a taller detection field to reliably trigger it. Shadow loops on swing and double-swing gates use their own dimension formulas based on driveway width, since they're sized to cover the gate's actual arc rather than a simple rectangular path — this is another spot where consulting a manufacturer's loop size chart for the specific gate configuration saves a redesign after the loop is already cut in.

Step 4: Match Wire Gauge and Construction to the Application

Not all loop wire is built the same, and this is where preformed loops from an established manufacturer earn their premium over field-wound loops. Look for solid copper wire in the 14 to 16 AWG range, rated for direct burial, with enough tensile strength to survive being pulled into a saw-cut groove or handled during a concrete pour without breaking strands. Just as important: the loop wire itself should never sit inside a length of conduit, because the air gap that creates makes the loop sensitive to ground vibration, which shows up in the field as phantom detections and repeat service calls. Conduit belongs on the lead-in run, not the loop itself.

Step 5: Choose the Right Lead-In Length

Preformed loops ship as a complete assembly — a fixed loop size plus a fixed length of factory-terminated lead-in wire — which is worth planning for before ordering rather than after. Standard lead-in lengths typically run in preset increments, commonly in the 20- to 100-foot range, with longer runs available for loops positioned further from the gate, such as an exit loop meant to trigger well in advance to cut down on wait time. Order a lead-in that's longer than the measured run rather than right at the edge: excess can be trimmed at the panel, but a lead-in that's too short forces a splice, and every splice point is a place moisture can get in and eventually cause the loop to fail. If a splice is unavoidable, use a proper direct-burial-rated splice kit rather than standard electrical tape and wire nuts.

Step 6: Plan for Crosstalk, Depth, and Nearby Metal

A handful of site conditions affect loop performance in ways that are easy to design around if you know to check for them up front. Depth: loops are commonly buried 6 to 8 inches below the surface and can still function as deep as 14 inches, but sensitivity drops the deeper the loop sits, so shallower is generally better within that range. Nearby metal: stationary metal near a loop — rebar, drain pipes, manhole covers, metal grates — generally isn't a problem, since the detector is calibrated against whatever's already in the ground when it's first set up and only looks for a change from that baseline afterward. Where rebar is present, install the loop above it rather than below, since rebar below the loop absorbs part of the detection field and reduces sensitivity. Crosstalk: when multiple loop lead-ins run through the same trench or conduit, adjacent loops on similar frequencies can interfere with each other. Set each loop detector's frequency at least 5 kHz apart from its neighbors, or physically separate the lead-ins by a couple of inches, and crosstalk stops being an issue.

Step 7: Seal It Right on Saw-Cut Installs

For saw-cut installations, the sealant matters as much as the loop itself. Use a genuine sealer, not a filler — a runny, evaporation-cure crack filler will shrink and crack over time and let moisture into the groove. A proper loop sealant, applied with a dispensing gun and a flat tip sized to the groove width, fills the slot in a single pass without trapped air pockets. In cold climates, a two-part, quick-cure sealant rated to set in freezing temperatures avoids losing installation days to weather during winter work.

Standard Loop Sizes at a Glance

Preformed loop manufacturers publish standard size charts precisely because most gate widths fall into a predictable set of dimensions. A representative range looks like this:

These sizes are available as both saw-cut and direct burial loops with a range of preset lead-in lengths, and most manufacturers will cut custom sizes and custom lead-in lengths for non-standard openings — usually with same-day shipping if the order comes in before the daily cutoff.

Why Expert Guidance Is Worth Using Here

Loop sizing has real safety consequences, which is why it's worth leaning on a manufacturer that specializes in nothing else. BD Loops has built its entire business around preformed inductance loops since 2001, growing from a two-person shop into a dedicated manufacturing facility in Placentia, California, with every loop triple-tested before it ships and published sizing charts and free layout calculators — including a dedicated loop size chart and a "Loopalator" layout tool — specifically so installers can size a job correctly before cutting concrete. Their loops are brand-agnostic and work with any manufacturer's loop detector, which means the loop-selection decision can be made independently of which barrier or gate operator controller is running the site.

Loop Selection Checklist

• Is the pavement already in place (saw-cut) or not yet poured (direct burial)?
• How many loops does the gate type require — 2 minimum for slide, 3 minimum for swing or double swing?
• What's the driveway width, and does the vehicle mix call for a 4-foot or 6-foot short leg?
• Is the wire solid copper, direct-burial rated, and in the 14-16 AWG range?
• Does the lead-in length comfortably cover the run without needing a splice?
• Have depth, nearby rebar/metal, and multi-loop crosstalk been accounted for?
• For saw-cut jobs, is the sealant a true sealer rated for the installation climate?

Get the Loop Right and the Rest Follows

A correctly chosen and sized loop is largely a solved problem before it's ever installed — the type, count, dimensions, and wire spec are all determined by the gate configuration and site conditions, not by preference. Work through type, count, size, wire, and lead-in in that order, lean on a manufacturer's published sizing chart for the gate configuration in front of you, and the loop will do the one job it's there for: knowing a vehicle is in the path before the gate ever starts to close.
